Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
SBS8

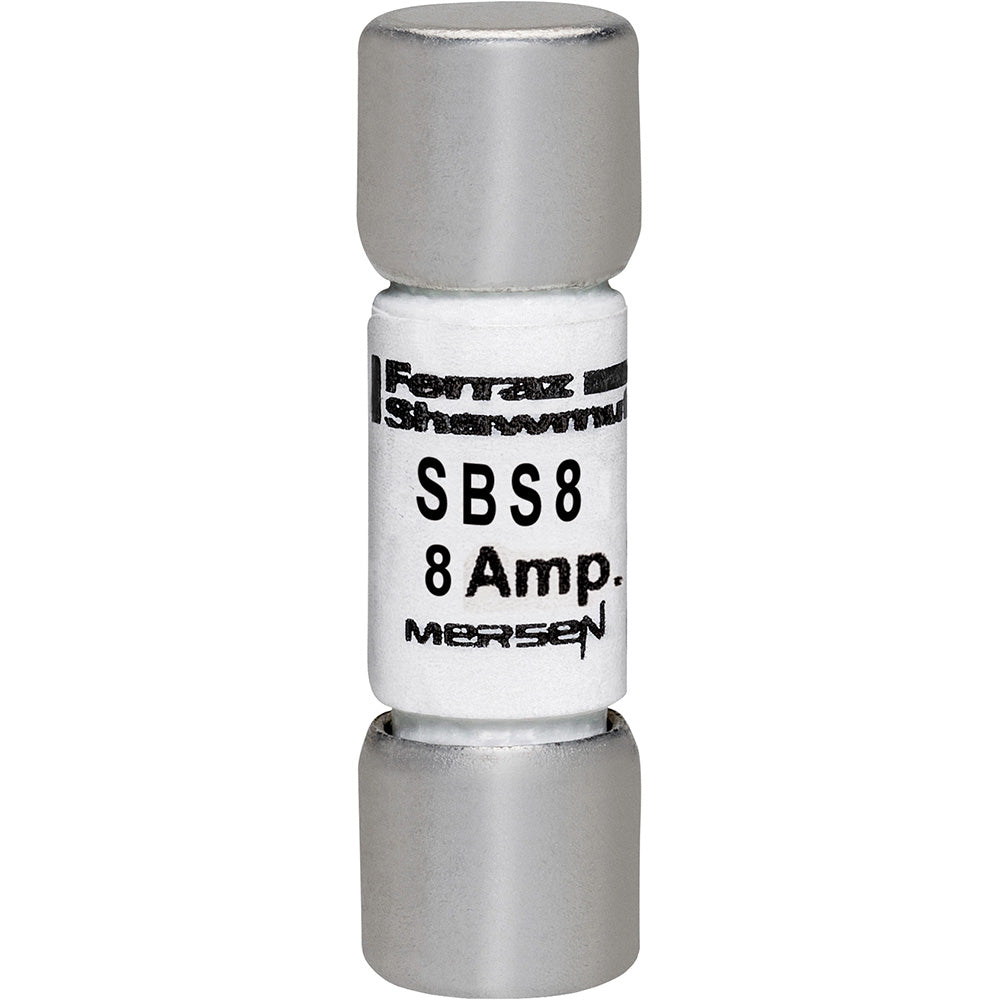

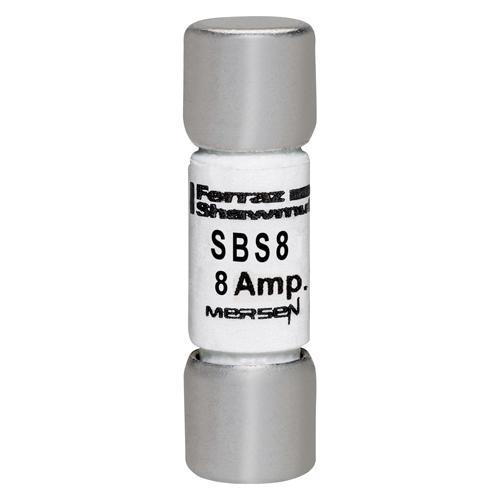

SBS8 is an 8 amp, 600 volt AC fast acting fuse from Mersen Ferraz Shawmut designed for general purpose protection in compact electrical equipment.This fuse features a fiberglass body for dimensional stability and unique small dimensions (13/32" diameter by 1-3/8" length) allowing maximum design flexibility. It has a high interrupting rating of 100,000 AIC at 600 VAC and is UL Listed to Standard 248-14 and CSA Certified to C22.2 No. 248.14. The SBS8 fuse fits UltraSafe fuse holders and replaces Littelfuse BLS and Bussmann BBS fuses.
- Key Specifications
- Amperage: 8 Amps
- Voltage Rating: 600 Volts AC
- Fuse Type: Fast Acting
- Body Material: Fiberglass
- Physical Size: 13/32" diameter x 1-3/8" length
- Interrupting Rating: 100,000 AIC @ 600 VAC
- Certifications: UL Listed 248-14, CSA Certified C22.2 No. 248.14
- Mounting: Fits UltraSafe Fuse Holder
- Replaces: Littelfuse BLS, Bussmann BBS
Specifications
- Part Number: SBS8
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 8
- AIC rating : 100kA@600V
- Diameter : 0.41
- Class Rating : Ferrule
- Barrels : 1
Product Data
- UPC : 78200190783
- GTIN : 00782001907839
- Weight : 1
