Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
SBS2

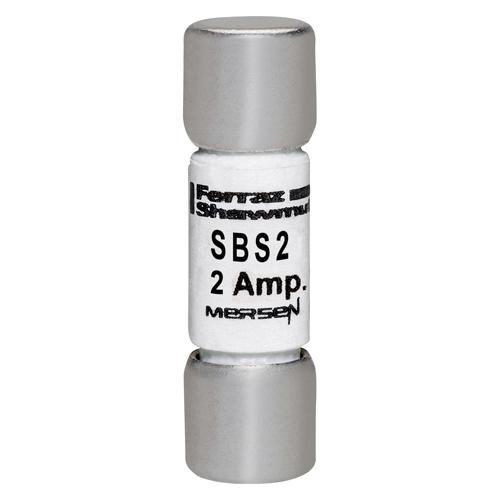

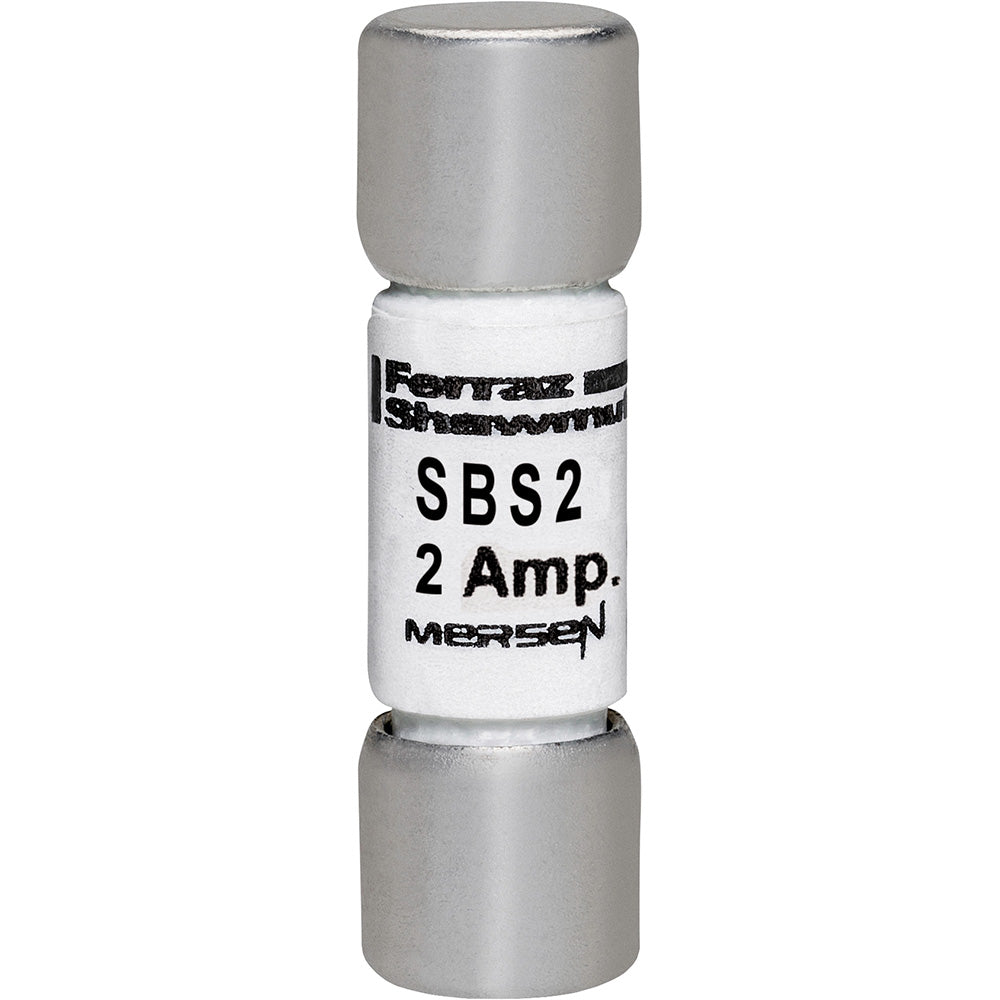

SBS2 is a 2 Amp, 600 Volt AC fast acting midget fuse from Mersen designed for compact electrical protection. SBS2 features a fiberglass body with unique small dimensions of 13/32" diameter by 1-3/8" length, providing maximum design flexibility for smaller equipment. It offers a high interrupting rating of 100,000 AIC at 600 VAC and is UL listed to standard 248-14 and CSA certified to C22.2 No. 248.14. This fuse is suitable for general purpose applications and is compatible with UltraSafe™ fuse holders.
- Amperage: 2 Amps
- Voltage Rating: 600 VAC
- Fuse Type: Fast Acting Midget Fuse
- Body Material: Fiberglass
- Physical Size: 13/32" diameter x 1-3/8" length
- Interrupting Rating: 100,000 AIC @ 600 VAC
- Certifications: UL Listed (File E33925), CSA Certified
- Series: SBS
- Mounting: Compatible with UltraSafe™ Fuse Holder
- Non-Interchangeable with other fuse classes
Specifications
- Part Number: SBS2
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 2
- AIC rating : 100kA@600V
- Diameter : 0.41
- Class Rating : Ferrule
- Barrels : 1
Product Data
- UPC : 078200190777
- GTIN : 00782001907778
- Country of Origin : Mexico
- Dimensions : x 1.38 in x
- Weight : 5
