Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
MEQ8

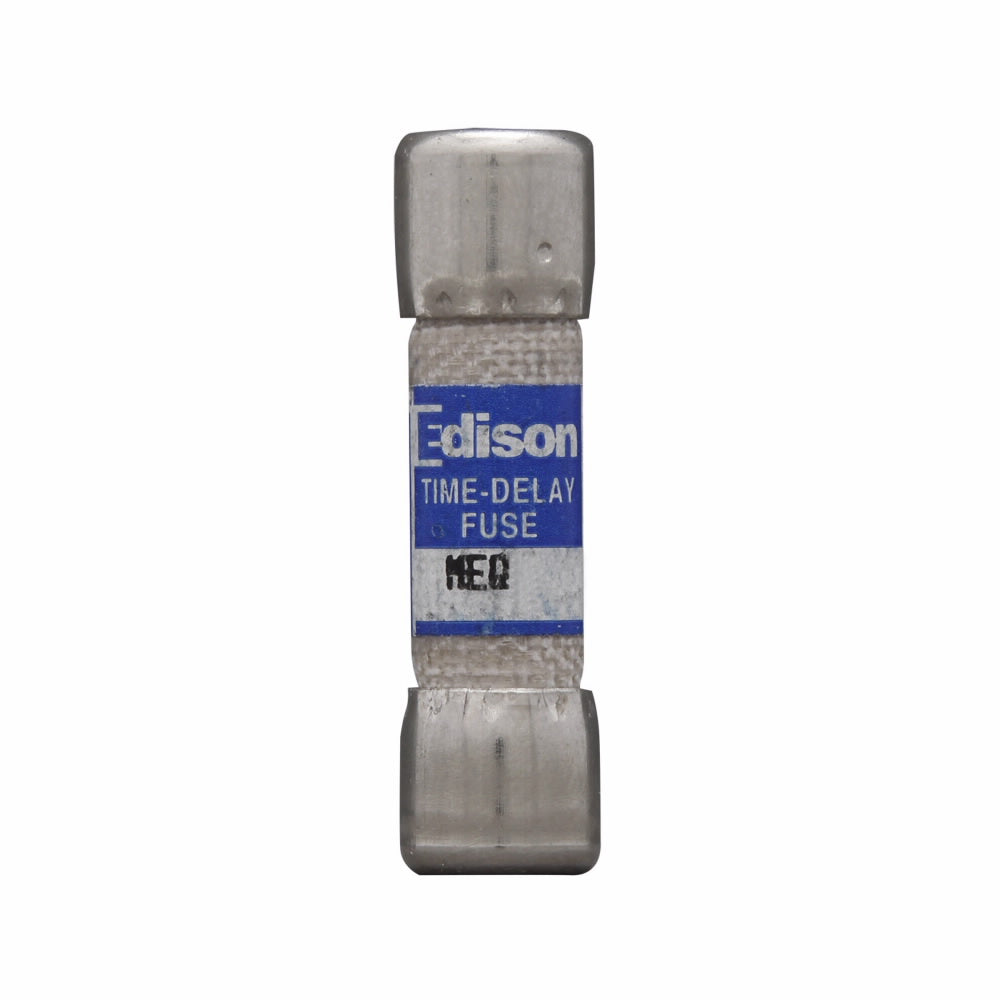

MEQ8 is an Eaton Edison 8 ampere, 500 volt time-delay midget fuse designed for supplemental protection of transformers, solenoids, and other high inrush circuits.MEQ8 features a fiber tube construction with a non-indicating design and a 10 kA interrupting rating at 500 Vac, meeting UL and CSA certifications and RoHS compliance.
- Amperage Rating: 8 A
- Voltage Rating: 500 V AC
- Interrupt Rating: 10 kAIC at 500 Vac
- Fuse Type: Time-delay midget fuse
- Construction: Fiber tube
- Indicator Type: Non-indicating
- Certifications: UL Listed, CSA Certified
- Compliance: RoHS Compliant
- Mounting Type: Standard
- Application: Supplemental protection for transformers, solenoids, high inrush circuits
- Physical Size: Approximately 0.406 in diameter by 1 in length
Specifications
- Part Number: MEQ8
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : MEQ Series
- Type : MEQ
- Voltage : 500
- Amperage : 8
- AIC rating : 10kA@500V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782634786085
- GTIN : 00782634786085
- Dimensions : 1 in x 0.406 in x 0.406 in (Length/Depth x Height x Width)
- Weight : 0.2
