Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

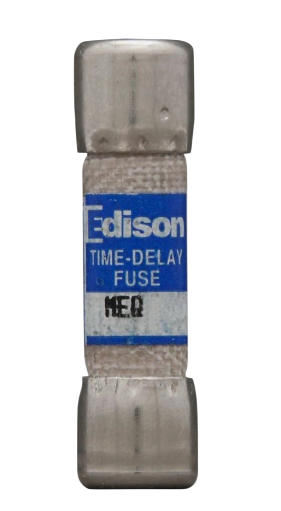

MEQ6
MEQ6 is a 6 Amp, 500 Volt time delay midget fuse from Edison Fuses designed for general purpose circuit protection.This MEQ Series fuse features a cylindrical cartridge body with ferrule terminal connections, providing reliable protection for transformers, solenoids, and other high inrush current circuits. It has a 10,000 A interrupt rating at 500 VAC and is UL listed, CSA certified, and CE compliant.
- Amperage: 6 Amp
- Voltage Rating: 500 Volt AC
- Fuse Type: Time Delay
- Class: Midget
- Interrupt Rating: 10,000 RMS Amps
- Mounting Type: Ferrule Terminal
- Shape: Cylindrical Cartridge
- Approvals: UL Listed, CSA Certified, CE Compliant
- Series: MEQ
- Length: Approximately 1.5 inches
- Diameter: Approximately 0.41 inches
Specifications
- Part Number: MEQ6
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : MEQ Series
- Type : MEQ
- Voltage : 500
- Amperage : 6
- AIC rating : 10kA@500V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782634786061
- GTIN : 782634786061
- Dimensions : 1 in x 0.406 in x 0.406 in (Length/Depth x Height x Width)
- Weight : 0.001
