Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
MEQ5

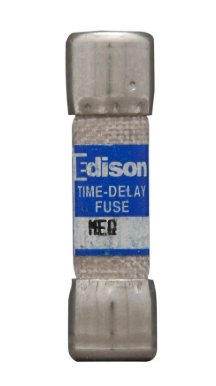

MEQ5 is a 5 amp, 500 volt time-delay midget fuse from Edison designed for supplemental circuit protection.MEQ5 features a fiber tube construction with ferrule ends, providing reliable performance in high inrush power electronic circuits. It has a 10 kA interrupt rating and is UL Listed and CSA Certified for safety and compliance.
- Key Specifications
- Amperage Rating: 5 A
- Voltage Rating: 500 V AC
- Fuse Type: Time-Delay
- Series: MEQ
- Body Type: Fiber Tube with Ferrule Ends
- Interrupt Rating: 10 kAIC
- Length: 1.5 inches
- Diameter: 13/32 inches
- Certifications: UL Listed, CSA Certified
- Mounting Type: Ferrule End Connections
- Part Number: MEQ5
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : MEQ Series
- Type : MEQ
- Voltage : 500
- Amperage : 5
- AIC rating : 10kA@500V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- UPC : 782634786207
- GTIN : 00782634786207
- Dimensions : 1 in x 0.406 in x 0.406 in (Length/Depth x Height x Width)
- Weight : 0.001
