Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
MEQ3

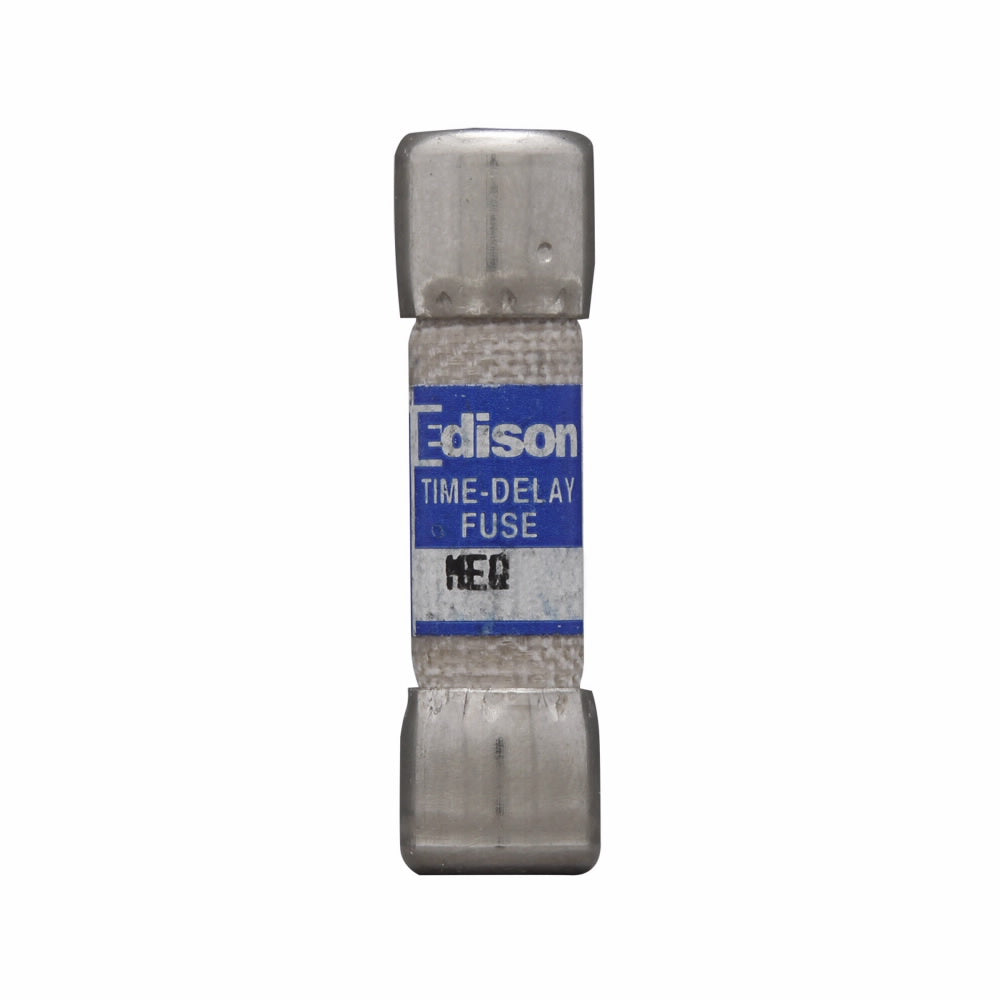

MEQ3 is a 3 Amp, 500 Volt time-delay midget fuse from Edison Fuses MEQ Series designed for low voltage applications.MEQ3 features a ferrule body type with a 13/32 x 1-1/2 inch size, providing supplemental protection with a 10kA interrupt rating. It is UL Listed and CSA certified for safety and reliability.
- Key Specifications
- Amperage: 3 Amps
- Voltage Rating: 500 VAC
- Fuse Type: Time-Delay Midget
- Series: MEQ
- Body Type: Ferrule
- Size: 13/32 x 1-1/2 inches (10 x 38 mm)
- Interrupt Rating: 10,000 Amps (10kA)
- Mounting Type: Ferrule End Connections
- Certifications: UL Listed, CSA Certified
- Application: Supplemental protection
- Part Number: MEQ3
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : MEQ Series
- Type : MEQ
- Voltage : 500
- Amperage : 3
- AIC rating : 10kA@500V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- UPC : 78263478627
- GTIN : 00782634786276
- Dimensions : 1 in x 0.406 in x 0.406 in (Length/Depth x Height x Width)
- Weight : 0.2
