Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

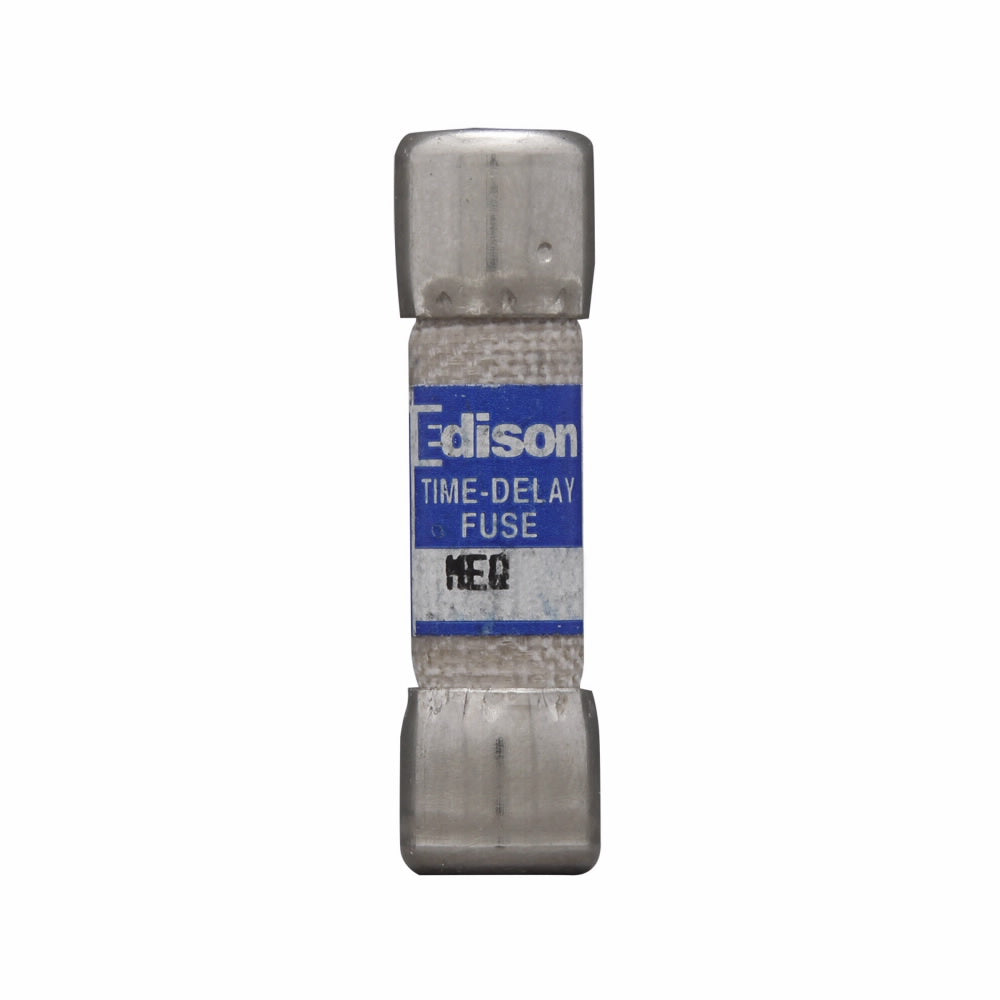

MEQ25
MEQ25 is a time-delay, midget-class fuse from Edison Fuses, designed for supplemental protection of power electronic circuits with high inrush currents.
This fuse features a compact, fiber tube construction with ferrule mounting, offering reliable protection against overcurrents in demanding applications. Its time-delay characteristic allows harmless inductive surges to pass without nuisance tripping, making it ideal for circuits with temporary high startup currents.
-
Key Specifications
- Amperage: 25A
- Voltage: 500V AC
- Poles: 1
- Mounting Type: Ferrule
- Interrupt Rating: 10 kAIC
- Series/Frame: MEQ, Class Midget
- Trip Unit: Time-delay
- Certifications: CSA Certified, UL Listed
- Construction: Fiber tube
- Application: Supplemental protection
- Package: 10 per pack
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: MEQ25
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : MEQ Series
- Type : MEQ
- Voltage : 500
- Amperage : 25
- AIC rating : 10kA@500V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782634786658
- GTIN : 00782634786658
- Dimensions : 1 in x 0.406 in x 0.406 in (Length/Depth x Height x Width)
- Weight : 0.2
