Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

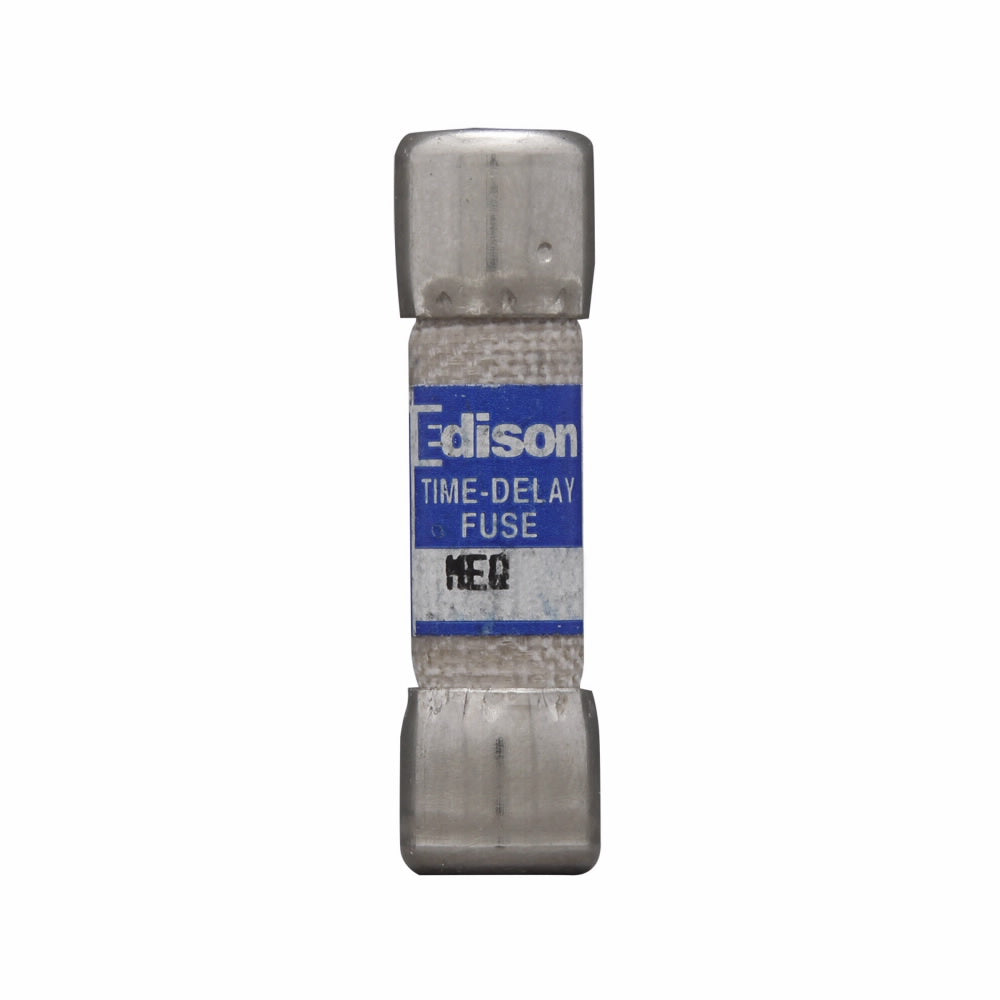

MEQ20
MEQ20 is a 20A, 500V time-delay midget fuse designed for supplemental protection of transformers, solenoids, and high inrush circuits. This Edison Fuses MEQ20 features a fiber tube construction and a 10kAIC interrupting rating, making it ideal for demanding electrical applications. The MEQ20 fuse is a single-pole, 1-barrel design with a 0.41 inch diameter and a 1-1/2 inch length. It is time-delayed to allow harmless inductive surges to pass without nuisance tripping, and is UL and CSA listed for safety and reliability. The fuse is non-indicating and constructed with a fiber tube for durability.
- Amperage Rating: 20A
- Voltage Rating: 500V
- Poles: 1
- Mounting Type: 1 Barrel
- Interrupt Rating: 10kAIC @ 500V
- Series/Frame: MEQ
- Trip Unit: Time-Delay
- Certifications: UL, CSA
- Construction: Fiber Tube
- Diameter: 0.41 inch
- Length: 1-1/2 inch
- Application: Supplemental Protection
Specifications
- Part Number: MEQ20
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 500
- Amperage : 20
- AIC rating : 10kA@500V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782634786351
- GTIN : 00782634786351
- Dimensions : 1 in x 0.406 in x 0.406 in (Length/Depth x Height x Width)
- Weight : 0.2
