Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

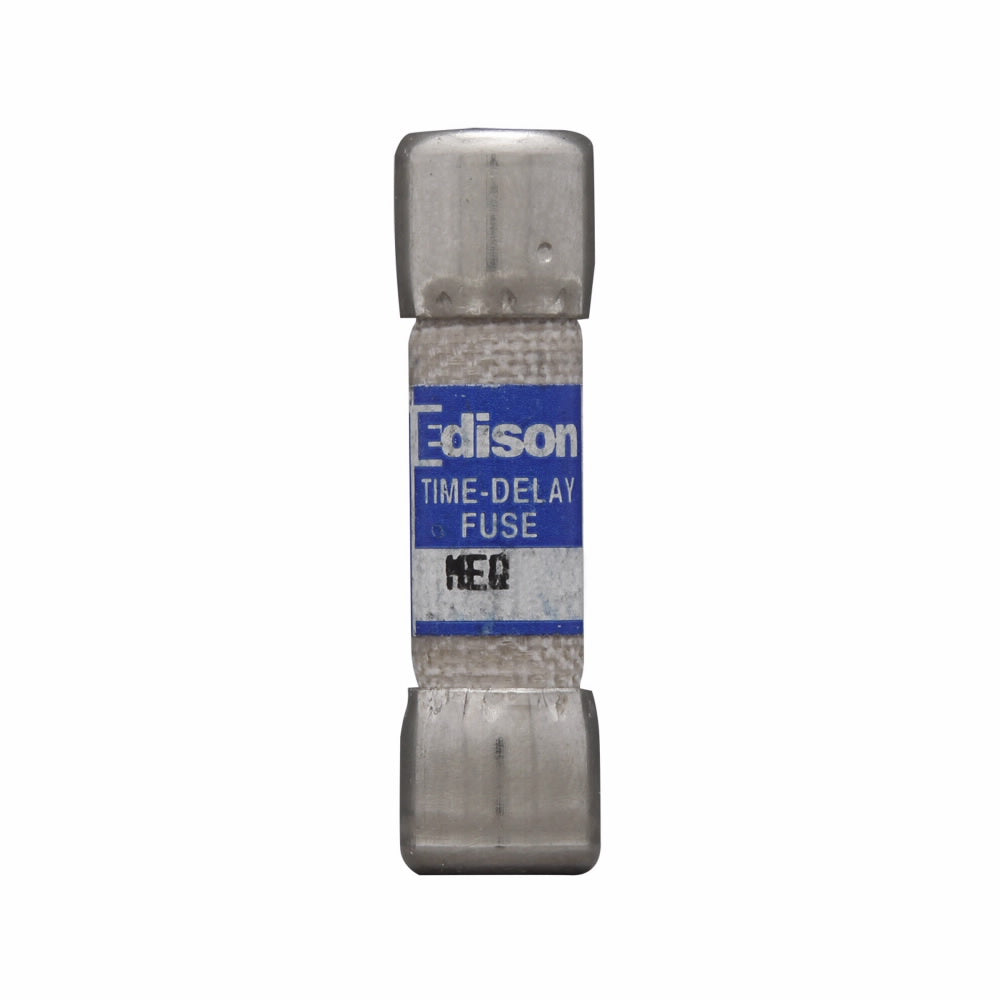

MEQ1
MEQ1 is a time-delay low voltage fuse from the Edison MEQ Series, designed for supplemental protection in transformers, solenoids, and high inrush circuits. This 1A, 500V fuse features a fiber tube construction and a 10kA interrupting rating, making it suitable for a wide range of industrial applications. The MEQ1 is a 1 barrel fuse with a diameter of 0.41 inches and is non-indicating.
- Amperage Rating: 1A
- Voltage Rating: 500V
- Interrupting Rating: 10kA @ 500V
- Series/Frame: MEQ Series
- Mounting Type: 1 Barrel
- Fuse Type: Time-Delay
- Construction: Fiber Tube
- Agency Approvals: UL Listed, CSA Certified
- Diameter: 0.41 inches
- Application: Transformers, Solenoids, High Inrush Circuits
Specifications
- Part Number: MEQ1
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : MEQ Series
- Type : MEQ
- Voltage : 500
- Amperage : 1
- AIC rating : 10kA@500V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782634786139
- GTIN : 00782634786139
- Dimensions : 1 in x 0.406 in x 0.406 in (Length/Depth x Height x Width)
- Weight : 0.2
