MEN30 - Edison Fuses 30A 250V Time-Delay Low Voltage Fuse 1 Barrel 10kA Interrupt Rating

MEN30

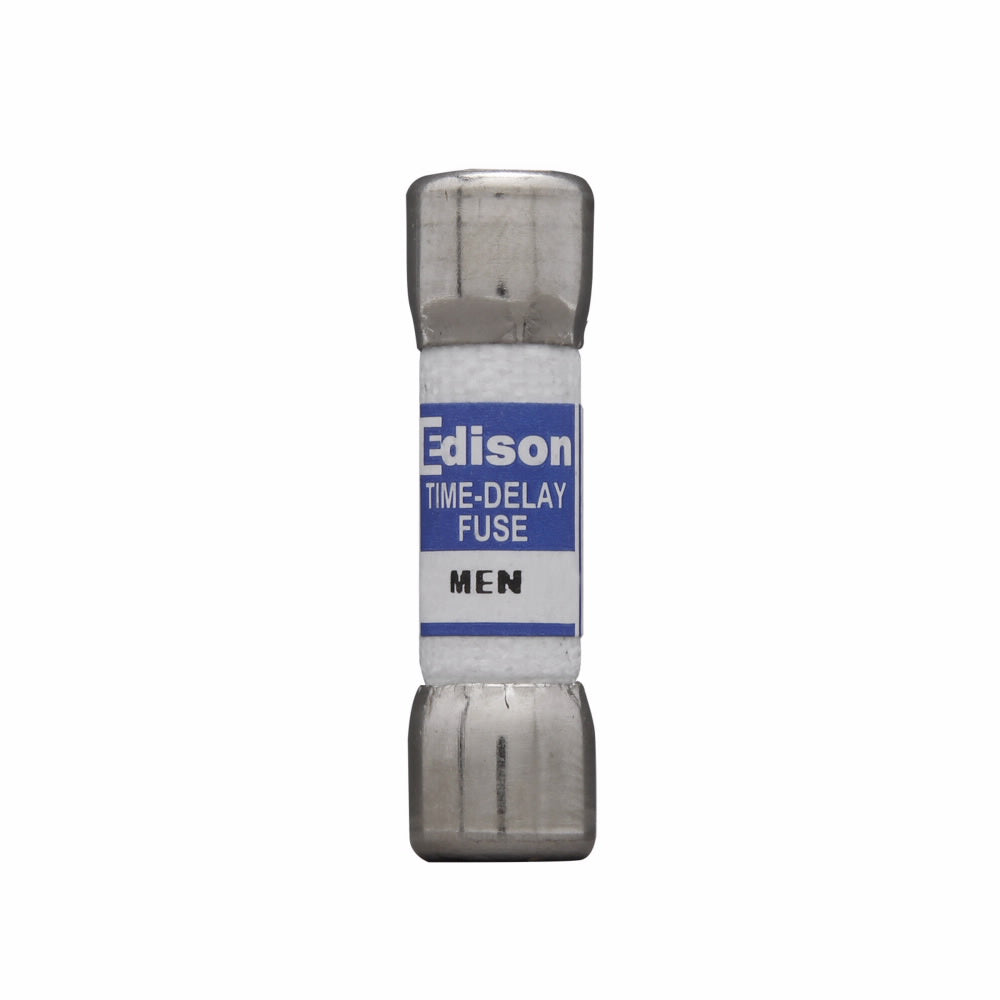

MEN30 Edison Fuses 30A 250V Time-Delay Low Voltage Fuse with 1 Barrel design and 10,000 A interrupt rating.The MEN30 is a general purpose midget class fuse designed for low voltage circuit protection. It features a 30 ampere rating, 250 volts AC voltage rating, and a time-delay response for reliable protection against overloads and short circuits. The fuse has a 1 barrel mounting type with a diameter of 0.41 inches and an interrupting rating of 10,000 RMS amps at 125 volts. It is UL Listed, CSA Certified, and CE Compliant, ensuring safety and performance standards.

Key Specifications
• Amperage: 30 Amps
• Voltage Rating: 250 Volts AC
• Fuse Type: Time-Delay
• Mounting Type: 1 Barrel
• Diameter: 0.41 inches
• Interrupt Rating: 10,000 A @ 125V
• Series/Frame: MEN Midget Class
• Certifications: UL Listed, CSA Certified, CE Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: MEN30
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 250
• Amperage : 30
• AIC rating : 10kA@125V
• Diameter : 0.41
• Class Rating : Midget
• Barrels : 1



Product Data

• UPC : 78263452300
• GTIN : 00782634523000
• Dimensions : 1 in x 0.406 in x 0.406 in (Length/Depth x Height x Width)
• Weight : 0.2
