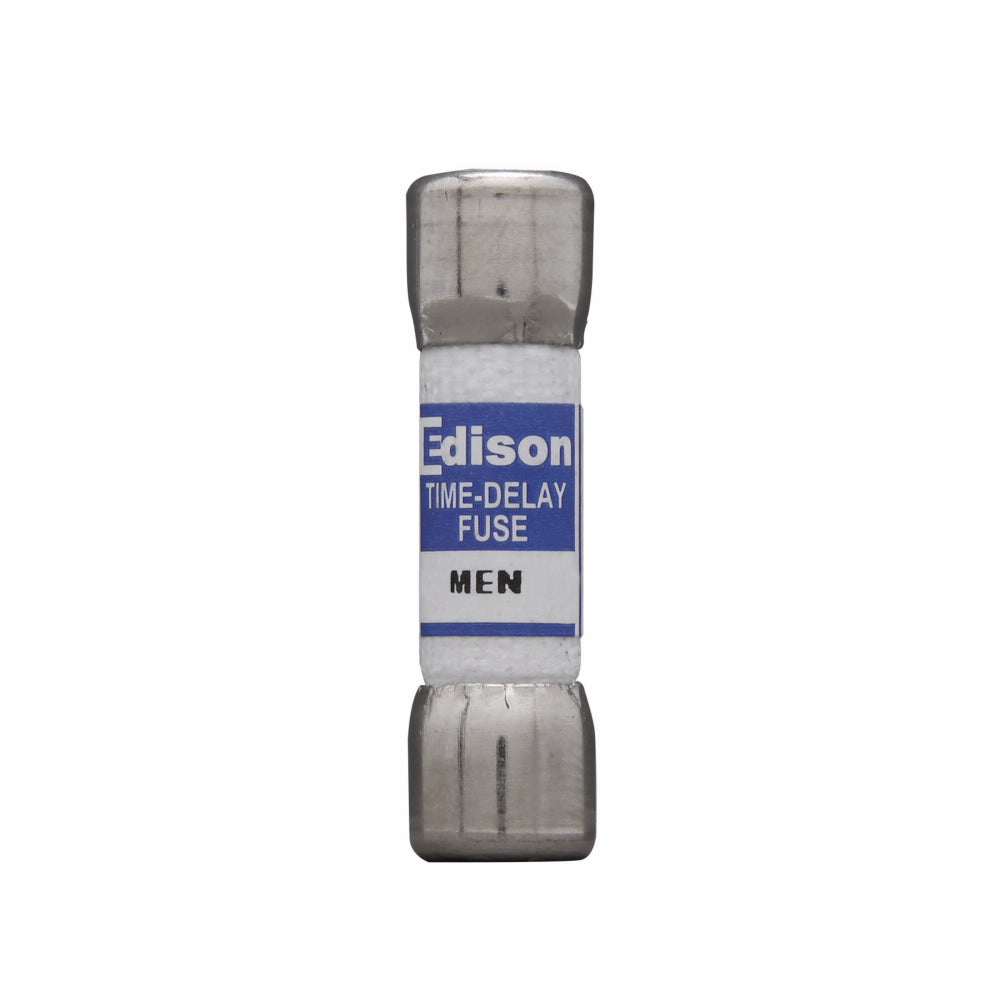

MEN15 - Edison 15A 250V Time-Delay Midget Fuse (MEN Series) - UL/CSA Listed

MEN15

MEN15 is a 15A 250V time-delay midget fuse from the Edison MEN Series, designed for supplemental protection in small motors, transformers, solenoids, and electronic circuits.This Edison MEN15 fuse features a dual-element, time-delay design for reliable circuit protection. It is rated for 250V AC and 15A, with a 10,000A interrupting rating at 125V. The fuse is UL and CSA listed, and features a 13/32" x 1-1/2" ferrule terminal for secure mounting.

• Part Number: MEN15
• Manufacturer: Edison Fuses
• Series: MEN
• Type: Time-Delay Midget Fuse
• Amperage Rating: 15A
• Voltage Rating: 250V AC
• Interrupting Rating: 10,000A RMS at 125V
• Mounting Type: Ferrule Terminal
• Length: 1-1/2 inches
• Diameter: 13/32 inches
• Approvals: UL Listed, CSA Certified
• Application: Supplemental protection for small motors, transformers, solenoids, electronic circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MEN15
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 250
• Amperage : 15
• AIC rating : 10kA@125V
• Diameter : 0.41
• Class Rating : Midget
• Barrels : 1

Product Data

• UPC : 78263452150
• GTIN : 00782634521501
• Dimensions : 1 in x 0.406 in x 0.406 in (Length/Depth x Height x Width)
• Weight : 0.2
