Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

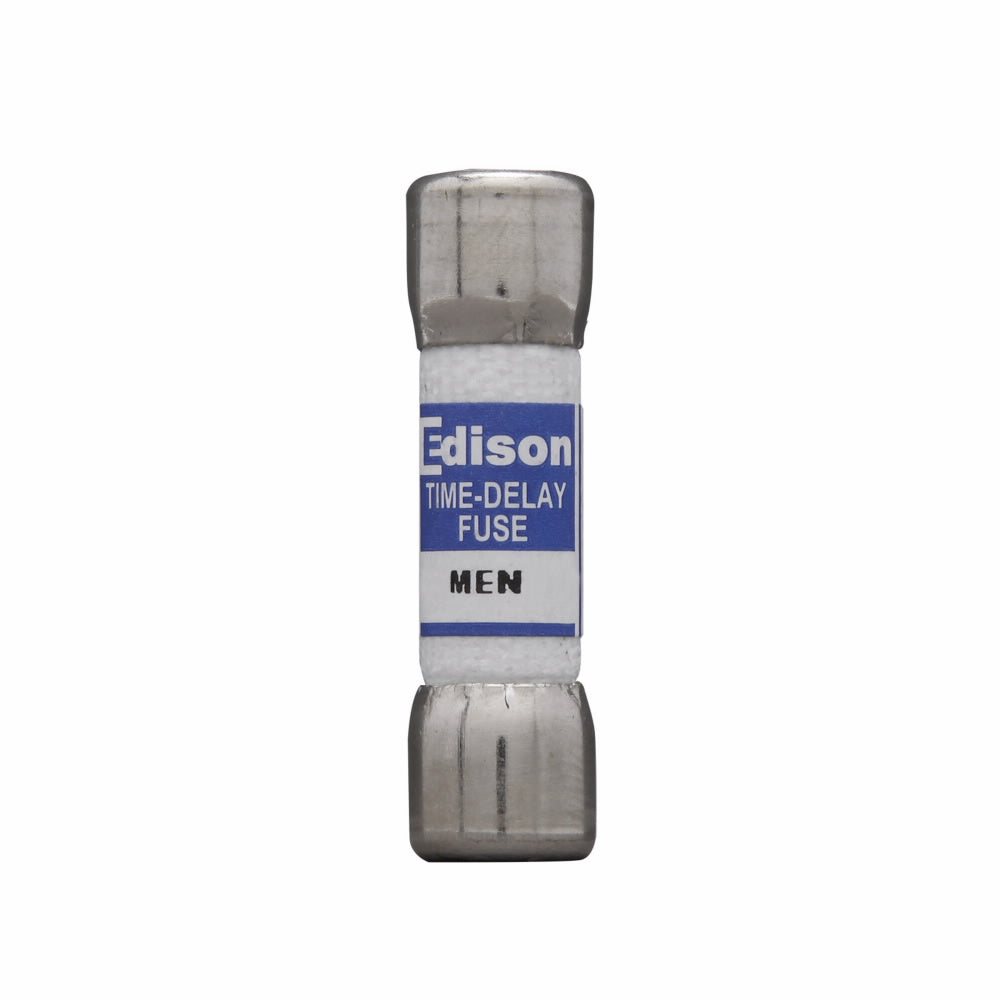

MEN1
MEN1 is a 1 Amp, 250 Volt time delayed midget fuse from Edison Fuses designed for supplemental protection of small motors, transformers, solenoids, and high inrush power electronic circuits.This fuse features a fiber tube construction with ferrule end connections, a 10,000 Amp interrupting rating at 125 VAC, and a diameter of approximately 13/32 inch. It is UL listed, CSA certified, and CE compliant, making it suitable for reliable circuit protection in various industrial and commercial applications.
- Amperage Rating: 1 Amp
- Voltage Rating: 250 Volts AC
- Fuse Type: Time Delayed (Slow Blow)
- Interrupting Rating: 10,000 Amps at 125 VAC
- Construction: Fiber Tube
- Dimensions: Approx. 1-1/2 inch length, 13/32 inch diameter
- Connection Type: Ferrule End X Ferrule End
- Certifications: UL Listed, CSA Certified, CE Compliant
- Application: Supplemental protection for motors, transformers, solenoids
- Series: MEN Midget Fuse
Specifications
- Part Number: MEN1
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 250
- Amperage : 1
- AIC rating : 10kA@125V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782634520108
- GTIN : 00782634520108
- Dimensions : 1 in x 0.406 in x 0.406 in (Length/Depth x Height x Width)
- Weight : 0.2
