Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

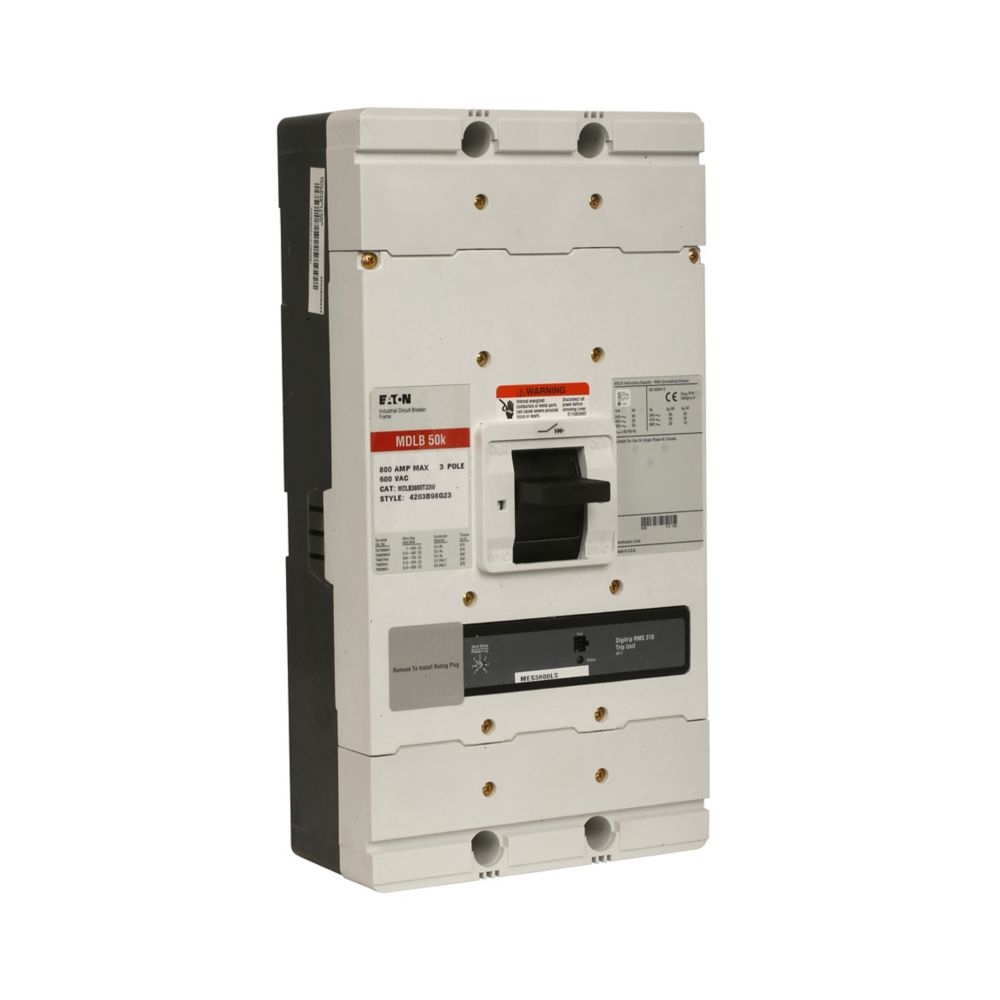

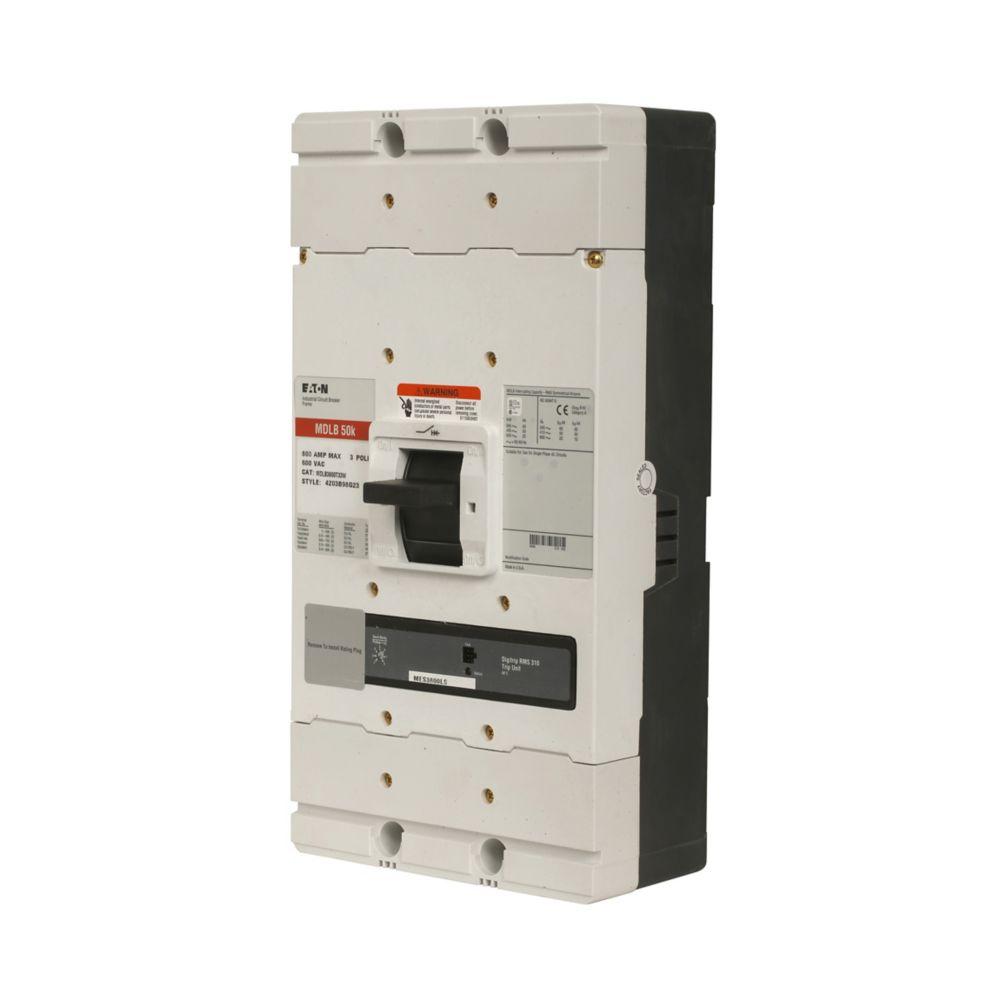

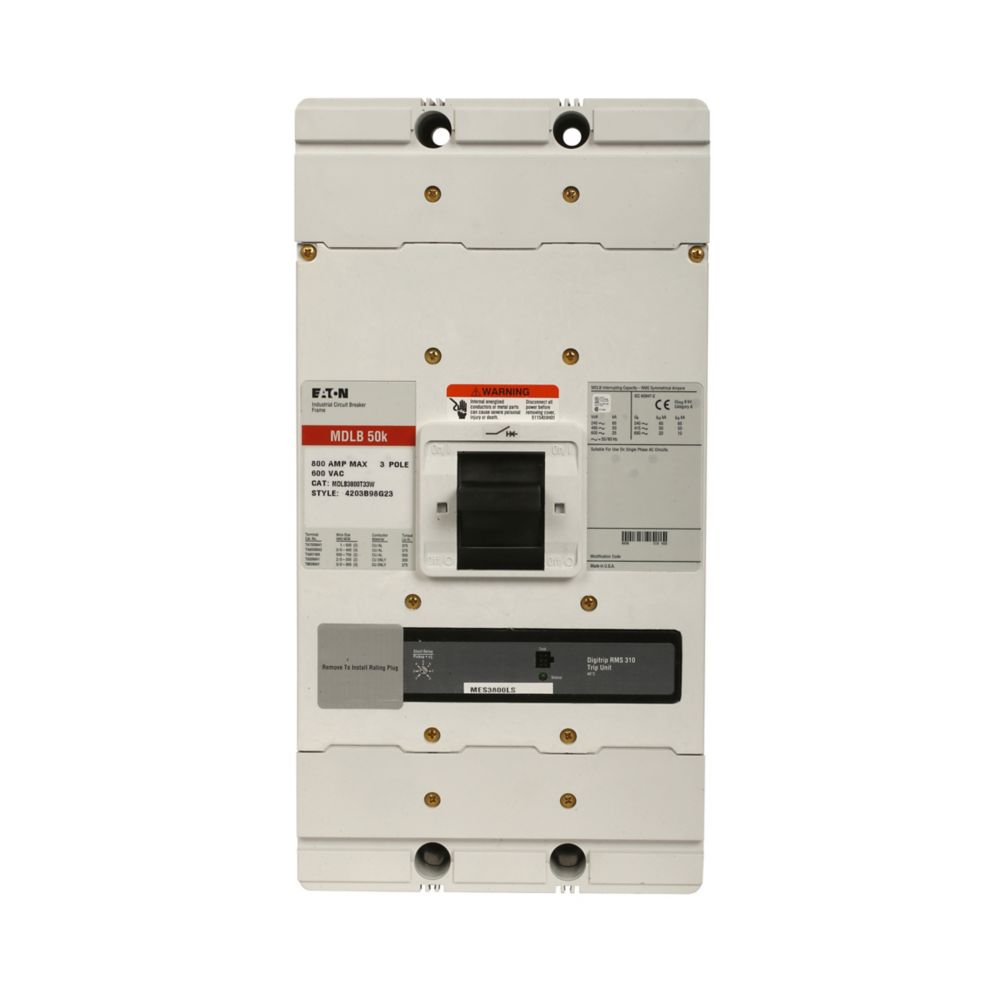

MDLB3800FT36W
MDLB3800FT36W is a Series C electronic molded case circuit breaker designed for reliable protection in demanding electrical environments. This unit features a robust MDL-frame construction and is equipped with a Digitrip 310 RMS electronic LSIG trip unit for precise overcurrent protection.Engineered for high performance, the MDLB3800FT36W offers a 3-pole configuration and is rated for 800A continuous current and 600V AC operation. Its compact design and electronic trip technology make it suitable for a wide range of industrial and commercial applications.
- Series C electronic molded case circuit breaker
- MDL-frame, MDLB type
- Digitrip 310 RMS electronic LSIG trip unit
- 3-pole configuration
- 800A continuous current rating
- 600V AC voltage rating
- Electronic trip technology for precise protection
- Compact design for space-saving installation
Specifications
- Part Number: MDLB3800FT36W
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Section : Electronic molded case circuit breaker
- Type : C
- Voltage : 600VAC, 250VDC
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 65kAIC at 240VAC, 50kAIC at 480VAC
- Connection : Feed-Thru
- Functions : LSIG - Long Time, Short Time, Instantaneous and Ground Fault Trip
- Protection : Thermal Magnetic
- Compatible Frames : MDL
Product Data
- UPC : 786679139646
- Dimensions : 4.06 in x 16 in x 8.25 in (Length/Depth x Height x Width)
- Weight : 30
- Certification : UL, CE
