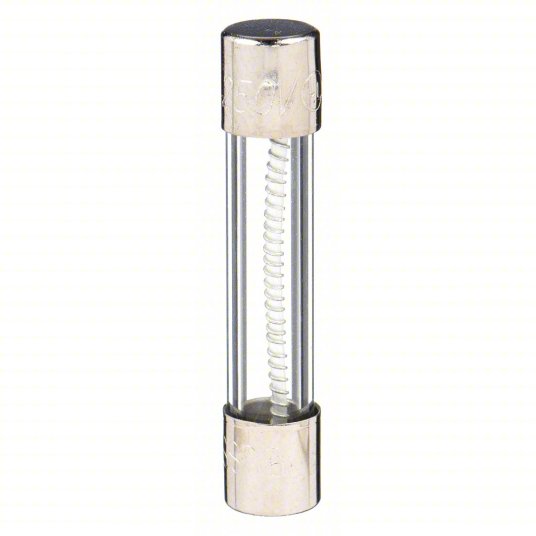

MDL-8-R - Eaton 8A 250V Time-Delay Glass Tube Fuse 1/4 x 1 1/4 Inch Cartridge

MDL-8-R

MDL-8-R is an Eaton 8 amp, 250 volt AC time-delay glass tube fuse designed for electronic circuit protection.MDL-8-R features a 1/4 x 1 1/4 inch (6.35 x 31.75 mm) glass cartridge construction with nickel-plated brass end caps, providing reliable performance with a 200 A interrupt rating at 250 VAC and 10,000 A at 125 VAC. It is UL listed to standard 248-14 and CSA certified, requiring a fuse holder for mounting.

Key Specifications
• Current Rating: 8 Amps
• Voltage Rating: 250 VAC, 32 VDC (self certified)
• Fuse Type: Time Delay (slow blow)
• Physical Size: 1/4 x 1 1/4 inch (6.35 x 31.75 mm)
• Interrupt Rating: 200 AIC at 250 VAC, 10,000 AIC at 125 VAC
• Mounting Type: Requires fuse holder
• Construction: Glass tube with nickel-plated brass end caps
• Certifications: UL Listed, CSA Certified, RoHS Compliant, CE Marked
• Response Time: 60 min at 135%, 120 sec at 200%, 5 sec at 200%
• Fuse Indicator: Non-indicating

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MDL-8-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : MDL Series
• Type : MDL
• Voltage : 250
• Amperage : 8
• AIC rating : 200A@250Vac
• Connection : Ferrule
• Diameter : 0.81
• Barrels : 1

Product Data

• UPC : 05171265237
• GTIN : 00051712652377
• Weight : 5.19
