Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
MDL-8/10-R

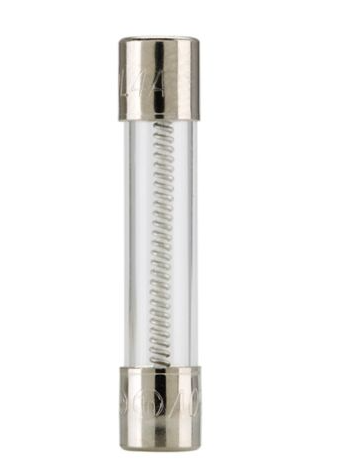

MDL-8/10-R is an Eaton time-delay glass cartridge fuse rated for 800mA and 250VAC, designed for reliable circuit protection.This fuse features a 3AG (6.3 mm x 32 mm) glass tube construction with nickel-plated brass endcaps, providing robust performance in time-delay applications. It is UL Listed to standard 248-14 and suitable for use in holders or clips. The fuse has a 1-pole configuration and is ideal for protecting sensitive electronic circuits requiring slow-blow characteristics.
- Current Rating: 800mA (0.8A)
- Voltage Rating: 250VAC, 32VDC (self-certified)
- Fuse Type: Time Delay / Slow Blow
- Fuse Size: 3AG (6.3 mm x 32 mm)
- Mounting Style: Holder / Clip
- Construction: Glass tube with nickel-plated brass endcaps
- Interrupt Rating: 10,000A at 250VAC
- UL Listed to UL 248-14
- 1-Pole fuse
- Series: Eaton MDL
Specifications
- Part Number: MDL-8/10-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : MDL Series
- Type : MDL
- Voltage : 250
- Amperage : 8
- AIC rating : 35A@250Vac
- Connection : Ferrule
- Diameter : 0.81
- Barrels : 1
Product Data
- UPC : 05171265238
- GTIN : 00051712652384
- Weight : 3.5
