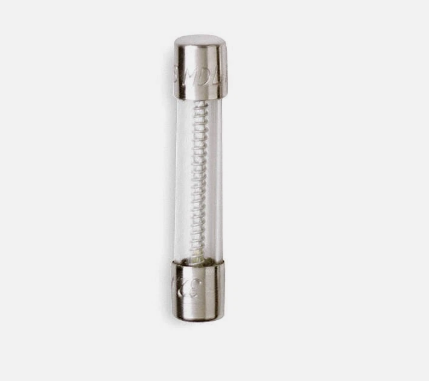

MDL-5-R - Eaton 5A 250V Time-Delay Glass Tube Fuse 1/4 x 1-1/4 Inch 200A Interrupt Rating

MDL-5-R

MDL-5-R is a 5 amp, 250 volt time-delay glass tube fuse from Eaton's Bussmann MDL series designed for electronic circuit protection.This fuse features a 1/4 x 1-1/4 inch glass tube with nickel-plated brass end caps, providing reliable time-delay performance with interrupt ratings of 200 AIC at 250 VAC and 10 kAIC at 125 VAC. It is UL listed to standard 248-14 and RoHS compliant, suitable for axial lead connections in electronic applications.

• Amperage Rating: 5 A
• Voltage Rating: 250 VAC, 32 VDC (self certified)
• Interrupt Rating: 200 AIC at 250 VAC, 10 kAIC at 125 VAC
• Fuse Type: Time-Delay (Slow Blow)
• Physical Size: 1/4 x 1-1/4 inch (6.35 x 31.75 mm)
• Construction: Glass tube with nickel-plated brass end caps
• Mounting Type: Axial lead / ferrule end connections
• Certifications: UL Listed (Standard 248-14), RoHS Compliant, CE Marked
• Response Time: 60 min at 135%, 120 sec at 200%, 5 sec at 200%
• Non-indicating fuse

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MDL-5-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : MDL Series
• Type : MDL
• Voltage : 250
• Amperage : 5
• AIC rating : 200A@250Vac
• Connection : Ferrule
• Diameter : 0.81
• Barrels : 1

Product Data

• UPC : 05171265230
• GTIN : 00051712652308
• Weight : 5.19
