Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
MDL-30-R

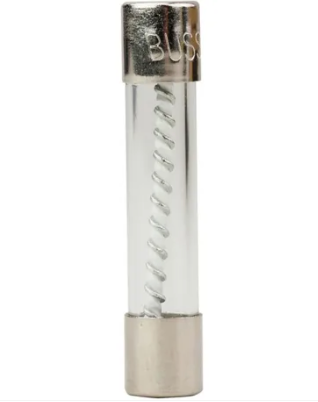

MDL-30-R is a 30A, 32VAC time-delay glass fuse designed for reliable circuit protection in industrial and commercial applications. This fuse features a glass tube construction with nickel-plated brass endcaps and a 1/4" x 1 1/4" physical size, meeting UL 248-14 standards for safety and performance. The MDL-30-R offers a 1,000AIC interrupting rating at 32VAC, making it suitable for demanding environments where surge protection is critical. Eaton MDL series fuses are single-element, time-delay cartridge fuses with a cylindrical glass body. These fuses are RoHS compliant and recognized for their durability and consistent performance. The MDL-30-R is ideal for use in control panels, power distribution systems, and other applications requiring reliable overcurrent protection.
- Part Number: MDL-30-R
- Manufacturer: Eaton
- Amperage: 30A
- Voltage Rating: 32VAC
- Interrupting Rating: 1,000AIC @ 32VAC
- Physical Size: 1/4" x 1 1/4"
- Construction: Glass tube, nickel-plated brass endcaps
- Agency Approvals: UL Listed, CSA Recognized
- Series: MDL
- Mounting Type: Cartridge
- Time-Delay: Yes
- RoHS Compliant: Yes
Specifications
- Part Number: MDL-30-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : MDL Series
- Type : MDL
- Voltage : 32
- Amperage : 30
- AIC rating : 1kA@32Vac
- Connection : Ferrule
- Diameter : 1.02
- Barrels : 1
Product Data
- Weight : 0.08
