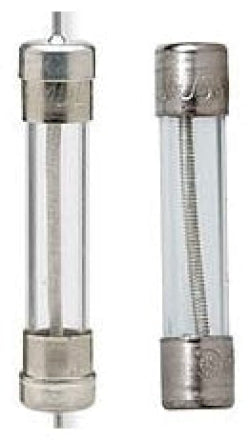

MDL-3 - Eaton 3A 250V Time-Delay Glass Tube Fuse, 1/4 x 1-1/4 Inch, Nickel-Plated Brass End Caps

MDL-3

MDL-3 is a 3 amp, 250 volt time-delay glass tube fuse from Eaton designed for electronic circuit protection.This Eaton Bussmann series MDL fuse features a 1/4 inch diameter by 1-1/4 inch length glass tube with nickel-plated brass end caps. It provides time-delay (slow blow) protection with an interrupt rating of 200 AIC at 250 VAC and 10,000 AIC at 125 VAC. The fuse meets UL 248-14 standards and is CE marked and RoHS compliant. It is suitable for axial lead mounting and designed for use in electronic circuits with inrush current.

Key Specifications
• Amperage: 3 A
• Voltage Rating: 250 VAC, 32 VDC
• Fuse Type: Time-Delay (Slow Blow)
• Physical Size: 1/4 x 1-1/4 inch (6.35 x 31.75 mm)
• Interrupt Rating: 200 AIC @ 250 VAC, 10,000 AIC @ 125 VAC
• Construction: Glass tube with nickel-plated brass end caps
• Mounting: Axial leads or cartridge fuse holder
• Certifications: UL Listed (UL 248-14), CE Marked, RoHS Compliant
• Response Time: 60 min at 135%, 120 sec at 200%, 5 sec at 200%
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: MDL-3
• Manufacturer : Eaton
• Brand : Eaton
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : MDL Series
• Type : MDL
• Voltage : 250
• Amperage : 3
• AIC rating : 100A@250Vac
• Connection : Ferrule
• Diameter : 0.81
• Barrels : 1



Product Data

• UPC : 051712652223
• GTIN : 00782114586006
• Weight : 7
• Certification : Ul Listed Csa Certified Ce Marked
