Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

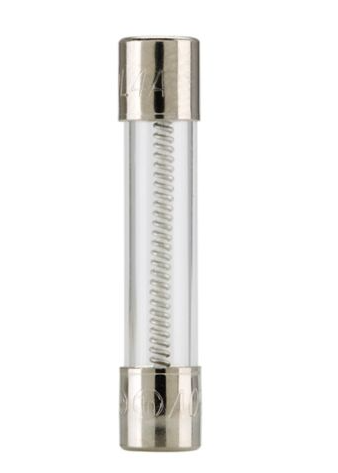

MDL-3/8-R
MDL-3/8-R is a time-delay glass tube fuse from Eaton's MDL Series, designed for reliable circuit protection in industrial and commercial applications.This fuse features a 0.375A current rating, 250VAC voltage rating, and a slow-blow response for applications requiring surge tolerance. Constructed with a glass tube and nickel-plated brass endcaps, it meets UL 248-14 standards and is suitable for use in fuse holders. The MDL Series offers high interrupting capacity and is ideal for protecting sensitive equipment.
- Part Number: MDL-3/8-R
- Manufacturer: Eaton
- Series: MDL
- Current Rating: 0.375A
- Voltage Rating: 250VAC, 32VDC
- Fuse Type: Cartridge, Glass
- Response Time: Slow Blow (Time-Delay)
- Mounting Type: Requires Holder
- Interrupting Rating: 10,000A
- Physical Size: 1/4 x 1 1/4 (6.4 x 31.7mm)
- Agency Approvals: UL Listed (UL 248-14)
- Construction: Glass Tube, Nickel-Plated Brass Endcaps
Specifications
- Part Number: MDL-3/8-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : MDL Series
- Type : MDL
- Voltage : 250
- Amperage : 3
- AIC rating : 35A@250Vac
- Connection : Ferrule
- Diameter : 0.81
- Barrels : 1
Product Data
- UPC : 05171265227
- GTIN : 00051712652278
- Weight : 0.1
