Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
MDL-3-2/10-R

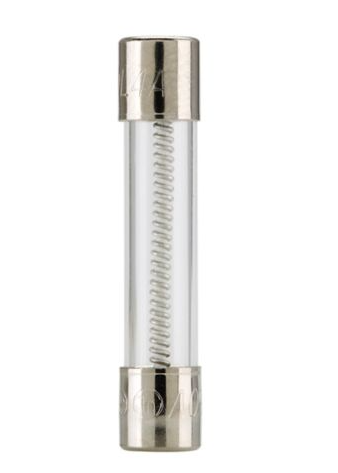

MDL-3-2/10-R is a Eaton MDL Series time-delay glass tube fuse rated for 3.2 amps and 250 volts AC.This fuse features a 6.3 x 32 mm (3AG) size with a time-delay characteristic suitable for protecting circuits against temporary overloads.
- Amperage: 3.2A
- Voltage Rating: 250 VAC, 32 VDC (self-certified)
- Fuse Type: Time-delay (slow blow)
- Physical Size: 6.3 x 32 mm (3AG)
- Interrupt Rating: 35A at 250 VAC
- Construction: Glass tube with nickel-plated brass endcaps
- Mounting Style: Requires fuse holder/clip
- Series: Eaton Bussmann MDL
- Certifications: UL Listed to standard 248-14
- Shock and Vibration Tested to MIL-STD-202
Specifications
- Part Number: MDL-3-2/10-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : MDL Series
- Type : MDL
- Voltage : 250
- Amperage : 3
- AIC rating : 100A@250Vac
- Connection : Ferrule
- Diameter : 0.81
- Barrels : 1
Product Data
- UPC : 05171265222
- GTIN : 00051712652223
- Weight : 0.15
