MDL-3/10-R - Eaton 0.3A 250V Time-Delay Glass Tube Fuse 3AG 35AIC 10kAIC UL CSA

MDL-3/10-R

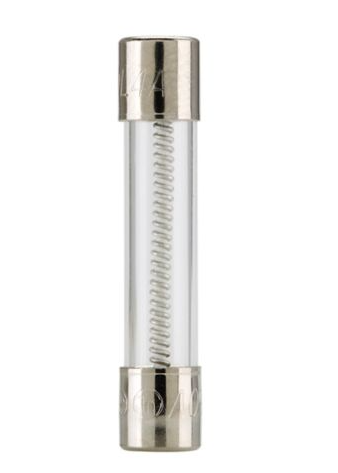

MDL-3/10-R is an Eaton MDL series time-delay glass tube fuse rated at 0.3 amps and 250 volts AC.This fuse features a 3AG (6.3 mm x 32 mm) size, nickel-plated brass end caps, and is designed for electronic circuit protection.

• Amperage: 0.3A
• Voltage Rating: 250 VAC, 32 VDC (self certified)
• Fuse Type: Time-delay (slow blow)
• Fuse Size: 3AG (6.3 mm x 32 mm)
• Interrupt Rating: 35 AIC at 250 VAC, 10 kAIC at 125 VAC
• Construction: Glass tube with nickel-plated brass end caps
• Response Time: 60 min at 135%, 120 sec at 200%, 5 sec at 200%
• Certifications: UL Listed, CSA Certified, RoHS Compliant, CE Marked
• Connection: Ferrule end x ferrule end
• Non-indicating fuse

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MDL-3/10-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : MDL Series
• Type : MDL
• Voltage : 250
• Amperage : 3
• AIC rating : 35A@250Vac
• Connection : Ferrule
• Diameter : 0.81
• Barrels : 1

Product Data

• UPC : 05171265223
• GTIN : 00051712652230
• Weight : 0.1
