Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
MDL-25-R

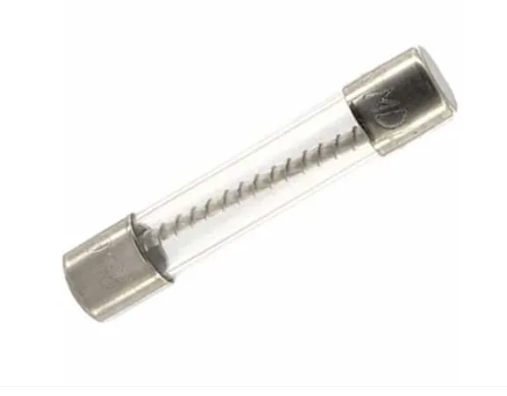

MDL-25-R is a 25 amp, 32 volt time delay glass tube fuse from Eaton designed for reliable circuit protection.This fuse features a glass tube construction with nickel-plated brass endcaps and provides time delay protection suitable for applications requiring temporary current surges tolerance. It is UL Listed to standard 248-14 and tested for shock and vibration resistance per MIL-STD-202. The fuse requires a holder for mounting and offers an interrupting rating of 35 amps at 250 VAC.
- Current Rating: 25 Amps
- Voltage Rating: 32 Volts AC
- Fuse Type: Time Delay (Slow Blow)
- Construction: Glass tube with nickel-plated brass endcaps
- Mounting Type: Requires holder
- Interrupting Rating: 35 Amps at 250 VAC
- UL Listed to standard 248-14
- Shock and Vibration Tested per MIL-STD-202
- Dimensions: 6.35 mm diameter x 31.75 mm length (3AG size)
Specifications
- Part Number: MDL-25-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : MDL Series
- Type : MDL
- Voltage : 32
- Amperage : 25
- AIC rating : 1kA@32Vac
- Connection : Ferrule
- Diameter : 1.02
- Barrels : 1
Product Data
- Weight : 5.19
