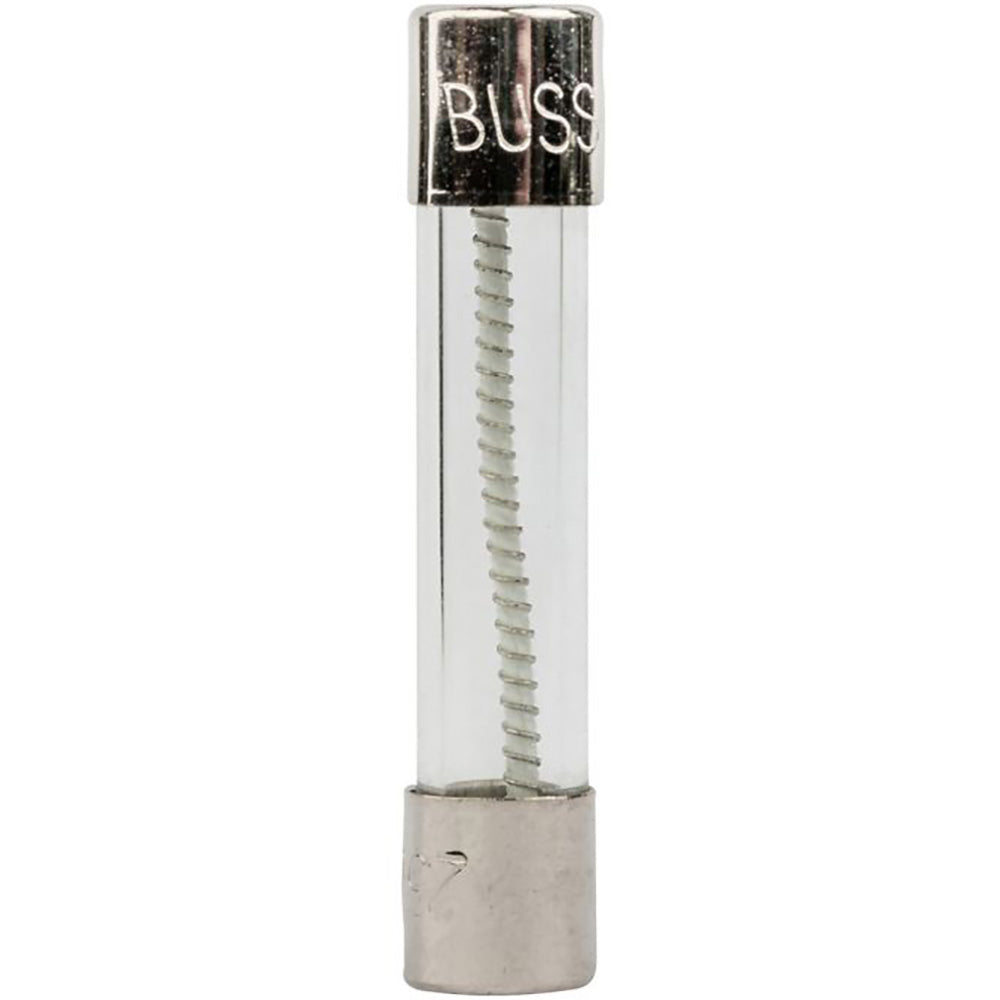

MDL-2-R - Eaton 2 Amp 250 Volt Time-Delay Glass Tube Fuse 1/4 x 1-1/4 Inch 3AG 100A Interrupt Rating

MDL-2-R

MDL-2-R is a 2 Amp, 250 Volt time-delay glass tube fuse from Eaton designed for electronic circuit protection.MDL-2-R features a 1/4 x 1-1/4 inch (6.3 mm x 32 mm) 3AG fuse size with nickel-plated brass end caps and a 100 Amp interrupt rating at 250 VAC. It is UL Listed to standard 248-14 and CSA certified, providing reliable time-delay protection for inductive loads and electronic applications.

• Amperage: 2 A
• Voltage Rating: 250 VAC, 32 VDC (self certified)
• Fuse Type: Time-delay (slow blow)
• Fuse Size: 3AG (6.3 mm x 32 mm)
• Interrupt Rating: 100 AIC at 250 VAC, 10,000 AIC at 125 VAC
• Construction: Glass tube with nickel-plated brass end caps
• Mounting: Requires fuse holder (3AB, 3AG compatible)
• Certifications: UL Listed, CSA Certified, RoHS Compliant
• Physical Size: 1/4" x 1-1/4"
• Response Time: 60 min at 135%, 120 sec at 200%, 5 sec at 200%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MDL-2-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : MDL Series
• Type : MDL
• Voltage : 250
• Amperage : 2
• AIC rating : 100A@250Vac
• Connection : Ferrule
• Diameter : 0.81
• Barrels : 1

Product Data

• UPC : 05171265215
• GTIN : 00051712652155
• Weight : 0.3
