MDL-15-R - Eaton 15A 32V Time-Delay Glass Tube Fuse, 1kA Interrupt Rating, 1/4 x 1 1/4 Inch

MDL-15-R

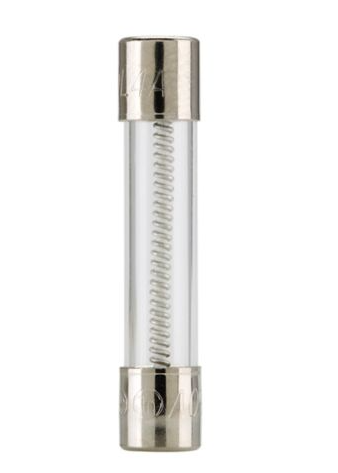

MDL-15-R is a Eaton Bussmann series time-delay glass tube fuse rated for 15 amps and 32 volts AC with a 1kA interrupt rating.MDL-15-R features a 1/4 x 1 1/4 inch (6.35 x 31.75 mm) glass tube construction with nickel-plated brass end caps designed for electronic circuit protection. It has a time-delay response characteristic, allowing it to withstand temporary surges without blowing immediately. The fuse is non-indicating and connects via ferrule end to ferrule end. It complies with RoHS and CE standards and is UL Listed to standard 248-14. Typical resistance is 0.005 ohms with a voltage drop of approximately 0.13V. The fuse is surface mountable and suitable for use in electronic applications requiring reliable overcurrent protection.

Key Specifications
• Amperage Rating: 15 A
• Voltage Rating: 32 Vac / 32 Vdc (self certified)
• Interrupt Rating: 1,000 AIC at 32 Vac
• Fuse Type: Time-delay glass tube
• Dimensions: 1/4 x 1 1/4 inch (6.35 x 31.75 mm)
• Connection: Ferrule end x ferrule end
• Material: Glass tube with nickel-plated brass end caps
• Response Time: 60 min at 135%, 120 sec at 200%, 5 sec at 200%
• Certifications: UL Listed (248-14), RoHS Compliant, CE Marked
• Mounting Method: Surface mount
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: MDL-15-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : MDL Series
• Type : MDL
• Voltage : 32
• Amperage : 15
• AIC rating : 1kA@32Vac
• Connection : Ferrule
• Diameter : 0.81
• Barrels : 1



Product Data

• UPC : 05171265657
• GTIN : 00051712656573
• Weight : 5.19
