Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
MDL-15/100

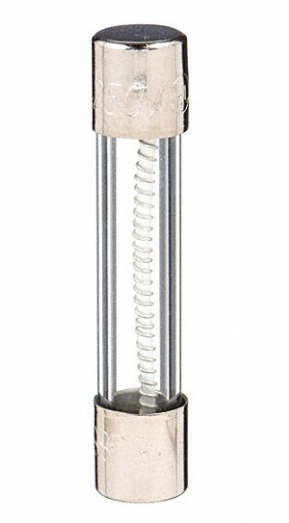

MDL-15/100 is a time-delay glass tube fuse designed for reliable circuit protection in electronic applications. This miniature cartridge fuse features a nickel-plated brass endcap construction and is UL Listed to meet standard 248-14 for dependable performance across various voltage and current requirements.Key Specifications
- Part Number: MDL-15/100
- Manufacturer: Eaton
- Current Rating: 150 mA
- Voltage Rating: 250 VAC
- Fuse Type: Time Delay / Slow Blow
- Fuse Size: 3AG (6.3 mm x 32 mm)
- Physical Dimensions: 1/4 x 1-1/4 inches (6.35 x 31.75 mm)
- Material: Glass tube with nickel-plated brass endcap
- Interrupting Rating: 35A at 250VAC, 10kA at 125VAC
- Mounting Style: Holder / Clip
- Agency Certification: UL Listed, Standard 248-14
Specifications
- Part Number: MDL-15/100
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : MDL Series
- Type : MDL
- Voltage : 250
- Amperage : 15
- AIC rating : 35A@250Vac
- Connection : Ferrule
- Diameter : 0.81
- Barrels : 1
Product Data
- UPC : 05171272430
- GTIN : 00051712724302
- Weight : 0.6
