Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
MDL-10

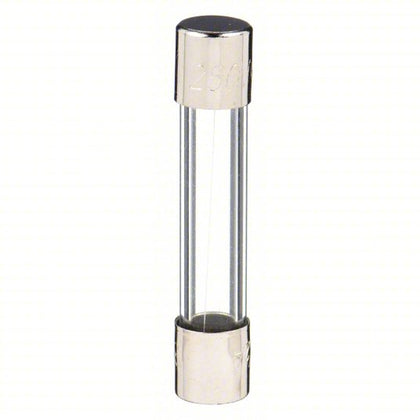

MDL-10 is a Cooper Bussmann, Bussmann, and Eaton 10 Amp, 32 Volt time delay glass fuse designed for reliable circuit protection in a compact 3AG/AB form factor.
This fuse features a glass tube with nickel-plated brass endcaps, offering a time delay (slow blow) characteristic to withstand temporary inrush currents. It is suitable for a variety of electronic and automotive applications where precise overcurrent protection is required. The MDL-10 is UL Listed and CSA Certified, ensuring compliance with industry safety standards.
-
Key Specifications
- Amperage: 10A
- Voltage: 32V AC
- Poles: Single
- Mounting Type: Cartridge, ferrule end x ferrule end
- Interrupt Rating: 1000A at 32V AC
- Series/Frame: MDL, 3AG/AB
- Trip Unit: Time Delay (Slow Blow)
- Certifications: UL Listed (248-14), CSA Certified
- Physical Size: 1/4" x 1 1/4" (6.35mm x 31.75mm)
- Construction: Glass tube, nickel-plated brass endcaps
- Application: Electronic, automotive, general purpose
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: MDL-10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : MDL Series
- Type : MDL
- Voltage : 32
- Amperage : 10
- AIC rating : 1kA@32Vac
- Connection : Ferrule
- Diameter : 0.81
- Barrels : 1
Product Data
- UPC : 051712652131
- GTIN : 00051712652131
- Dimensions : .25 inches diameter x 1.25 inches long
- Weight : 0.099 oz
