Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
MDL-1-R

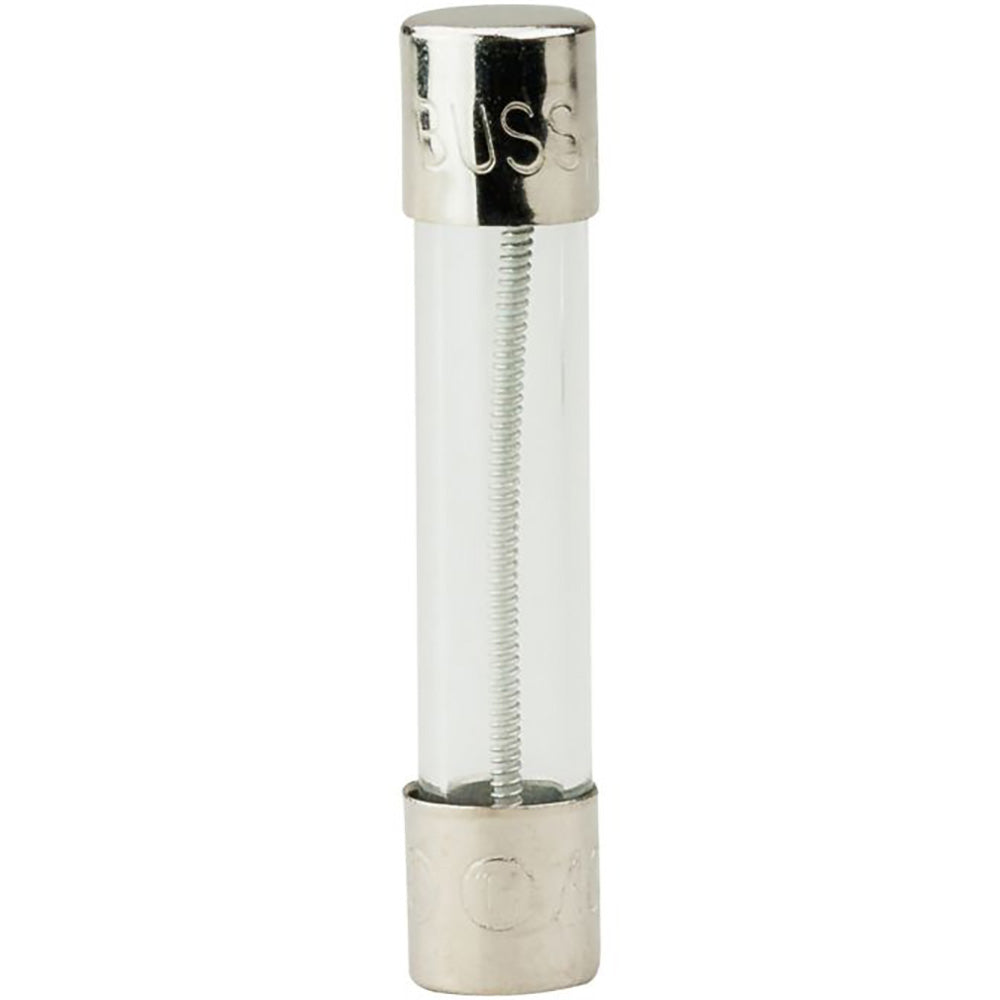

MDL-1-R is a 1 Amp, 250 Volt AC time-delay glass tube fuse from Eaton's MDL Series designed for reliable circuit protection.This fuse features a 3AG (6.3 mm x 32 mm) glass tube construction with nickel-plated brass end caps, providing durability and excellent electrical performance. It is UL listed to standard 248-14 and offers a 35 Amp interrupting rating at 250 VAC, suitable for industrial applications requiring time-delay characteristics to handle inductive loads.
- Current Rating: 1 Amp
- Voltage Rating: 250 VAC
- Fuse Type: Time Delay (Slow Blow)
- Fuse Size: 3AG (6.3 mm x 32 mm)
- Interrupting Rating: 35 Amps @ 250 VAC, 10,000 Amps @ 125 VAC
- Construction: Glass tube with nickel-plated brass end caps
- Mounting Type: Requires fuse holder
- UL Listed to standard 248-14
- CSA Certified
- Typical DC Cold Resistance: 0.273 Ohms
- Series: MDL
Specifications
- Part Number: MDL-1-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : MDL Series
- Type : MDL
- Voltage : 250
- Amperage : 1
- AIC rating : 100A@250Vac
- Connection : Ferrule
- Diameter : 0.81
- Barrels : 1
Product Data
- UPC : 05171265199
- GTIN : 00051712651998
- Weight : 0.15
