Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
MDL-1/4-R

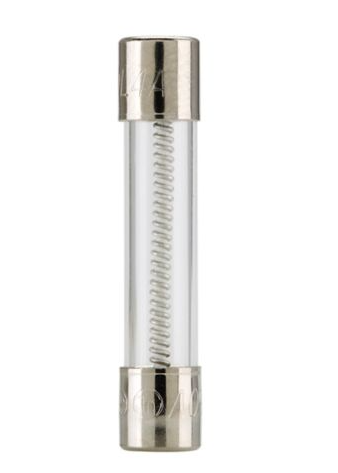

MDL-1/4-R is a 1/4 amp, 250 volt AC time-delay glass fuse designed for reliable circuit protection.This Eaton MDL series fuse features a 1/4 inch diameter by 1-1/4 inch length glass tube construction with nickel-plated brass endcaps. It offers a slow blow characteristic suitable for electronic applications requiring time-delay protection. The fuse has an interrupting rating of 35 amps at 250 VAC and 10,000 amps at 125 VAC, meeting UL 248-14 standards and CSA certifications.
- Current Rating: 1/4 Amp
- Voltage Rating: 250 VAC
- Fuse Type: Time Delay (Slow Blow)
- Physical Size: 1/4" x 1-1/4" (6.3 mm x 32 mm)
- Material: Glass tube with nickel-plated brass endcaps
- Interrupting Rating: 35 AIC @ 250 VAC, 10,000 AIC @ 125 VAC
- Mounting Type: Fuse holder/clip compatible
- UL Listed to Standard 248-14
- CSA Certified
- Series: Eaton Bussmann MDL
Specifications
- Part Number: MDL-1/4-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : MDL Series
- Type : MDL
- Voltage : 250
- Amperage : 1
- AIC rating : 35A@250Vac
- Connection : Ferrule
- Diameter : 0.81
- Barrels : 1
Product Data
- UPC : 05171265211
- GTIN : 00051712652117
- Weight : 5.19
