Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
MDL-1/32-R
MDL-1/32-R is a slow blow glass cartridge fuse designed for electronic circuit protection with a 32mA current rating and 250V AC voltage rating.

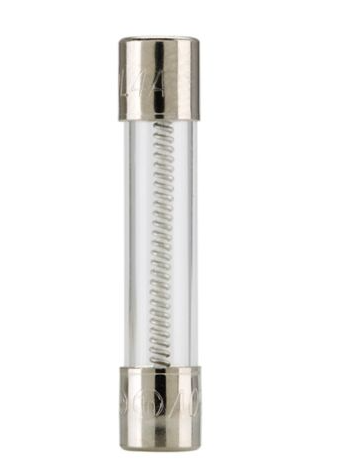

This fuse features a time-delay (slow blow) response suitable for protecting sensitive electronic components against overcurrent conditions. It has a glass tube construction with nickel-plated brass endcaps and measures 6.35 mm diameter by 31.75 mm length (1/4 x 1-1/4 inch). The fuse is board mount style and complies with UL 248-14 standards, providing reliable interrupting capacity for low current applications.
- Fuse Type: Glass Cartridge, Slow Blow (Time Delay)
- Current Rating: 32mA (0.032 Amps)
- Voltage Rating: 250 VAC
- Size: 6.35 mm x 31.75 mm (1/4 x 1-1/4 inch)
- Mounting Style: Board Mount
- Construction: Glass tube with nickel-plated brass endcaps
- Standards: UL Listed (UL 248-14)
- Series: MDL
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: MDL-1/32-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : MDL Series
- Type : MDL
- Voltage : 250
- Amperage : 1
- AIC rating : 35A@250Vac
- Connection : Ferrule
- Diameter : 0.81
- Barrels : 1
Product Data
- Weight : 0.15
