Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
MDL-1-2/10-R

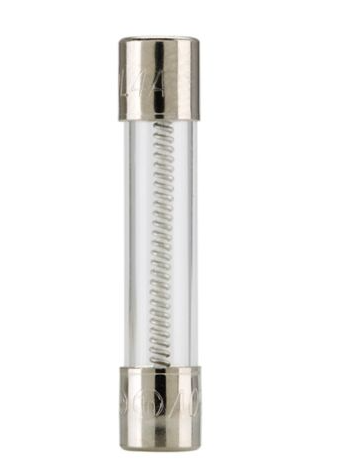

MDL-1-2/10-R is a Eaton time-delay glass tube fuse rated for 1.2 amps and 250 volts AC, designed for reliable circuit protection.MDL-1-2/10-R features a 3AG (6.3 x 32 mm) cylindrical glass cartridge construction with nickel-plated brass endcaps, providing durability and consistent performance. This slow-blow fuse is suitable for applications requiring time-delay protection to withstand temporary current surges. It has a 100 amp interrupt rating at 250VAC and meets UL 248-14 standards.
- Key Specifications
- Current Rating: 1.2 Amps
- Voltage Rating: 250 VAC, 32 VDC (self-certified)
- Fuse Type: Time-delay (Slow Blow)
- Fuse Size: 3AG (6.3 x 32 mm)
- Mounting Type: Requires holder
- Interrupt Rating: 100 Amps at 250 VAC
- Construction: Glass tube with nickel-plated brass endcaps
- Standards: UL Listed to UL 248-14
- Physical Size: 1/4 x 1 1/4 inch (6.4 x 31.7 mm)
Specifications
- Part Number: MDL-1-2/10-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : MDL Series
- Type : MDL
- Voltage : 250
- Amperage : 1
- AIC rating : 100A@250Vac
- Connection : Ferrule
- Diameter : 0.81
- Barrels : 1
Product Data
- UPC : 05171265203
- GTIN : 00051712652032
- Weight : 0.3
