MDL-1/16 - Eaton Bussmann Series Time-Delay Glass Tube Fuse 1/16 Amp 250V

MDL-1/16

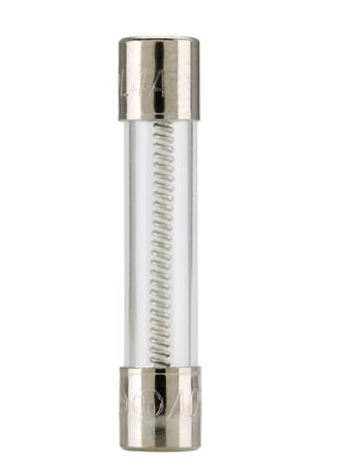

MDL-1/16 is an Eaton Bussmann Series time-delay glass tube fuse designed for electronic circuit protection applications. This slow-blow fuse features a 1/16 amperage rating (0.0625A) and is rated for 250 Vac with optional 32 Vdc self-certified capability, making it suitable for a wide range of low-amperage electronic equipment and instrumentation. The fuse utilizes a glass tube construction with nickel-plated brass end caps and ferrule connections, providing reliable performance and durability in demanding environments. Key Specifications

• Amperage Rating: 1/16 Amp (0.0625A)
• Voltage Rating: 250 Vac, 32 Vdc (self certified)
• Fuse Type: Time-Delay, Slow Blow
• Physical Size: 1/4 inch x 1 1/4 inch (6.35 x 31.75 mm)
• Material: Glass tube with nickel-plated brass end caps
• Connection Type: Ferrule end x ferrule end
• Interrupt Rating: 35 AIC at 250 Vac, 10 kAIC at 125 Vac
• Response Time: 60 min at 135%, 120 sec at 200%, 5 sec at 200%
• Cold Resistance: 45.6 ohms
• Mounting: Cartridge (3AG, 3AB holder compatible)
• Certifications: UL Listed (Standard 248-14), RoHS Compliant, CE Marked
• Application: Electronic circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MDL-1/16
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : MDL Series
• Type : MDL
• Voltage : 250
• Amperage : 1
• AIC rating : 35A@250Vac
• Connection : Ferrule
• Diameter : 0.81
• Barrels : 1

Product Data

• UPC : 051712724272
• Country of Origin : China
• Weight : 1
• Certification : Ul Listed Csa Certified Ce Marked
