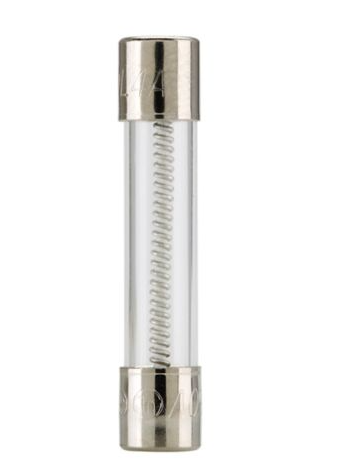

MDL-1-1/2 - Cooper Bussmann Bussmann Eaton 1.5A 250VAC Time Delay Glass Tube Fuse

MDL-1-1/2

MDL-1-1/2 is a time delay glass tube fuse designed for reliable circuit protection in electronic and industrial applications. This fuse features a 1.5A current rating and a 250VAC voltage rating, making it suitable for a wide range of equipment. The glass tube construction with nickel-plated brass endcaps ensures durability and consistent performance. It is commonly used in fuse blocks and panels requiring a compact, non-rejection fuse style. The MDL-1-1/2 fuse is engineered for time delay (slow blow) operation, providing protection against temporary surges while safeguarding sensitive circuits. It meets UL 248-14 and CSA standards, and is recognized for use in various industrial and commercial environments. The fuse is not rated for DC voltage and is designed for AC applications only.

• Amperage Rating: 1.5A
• Voltage Rating: 250VAC
• Interrupting Rating: 100A @ 250VAC, 10,000A @ 125VAC
• Physical Size: 1/4" x 1 1/4" (6.35mm x 31.75mm)
• Mounting Type: Non-rejection fuse block
• Series/Frame: MDL
• Response Type: Time Delay (Slow Blow)
• Material: Glass tube, nickel-plated brass endcaps
• Certifications: UL Listed, CSA Certified
• Standards: UL 248-14, CSA
• Application: Electronic circuits, industrial panels
• DC Voltage Rating: Not Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MDL-1-1/2
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : MDL Series
• Type : MDL
• Voltage : 250
• Amperage : 1
• AIC rating : 100A@250Vac
• Connection : Ferrule
• Diameter : 0.81
• Barrels : 1

Product Data

• UPC : 051712724463
• GTIN : 00051712652018
• Country of Origin : China
• Weight : 1
• Certification : Ul Listed Csa Certified Ce Marked
