Description
MDA-30A

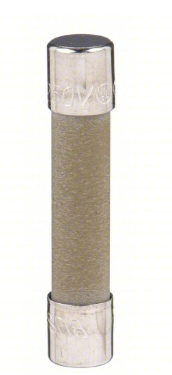

MDA-30A is a time delay, ceramic cartridge fuse from Eaton Bussmann, designed for reliable circuit protection in demanding applications.
This fuse features a 30A current rating, 250V AC voltage rating, and a 1/4" x 1-1/4" (6.3mm x 32mm) ceramic body with nickel-plated bronze endcaps. It is engineered for slow blow (time delay) operation, making it suitable for circuits with temporary inrush currents. The MDA-30A is UL recognized and CSA component accepted, ensuring compliance with North American safety standards.
-
Key Specifications
- Amperage: 30A
- Voltage: 250V AC / 125V DC
- Poles: Single
- Mounting Type: Holder (cartridge)
- Interrupt Rating: 1500A @ 250V AC; 10,000A @ 125V DC
- Series/Frame: MDA
- Trip Unit: Time delay (slow blow)
- Certifications: UL Recognized (Guide JDYX2, File E19180), CSA Component Acceptance (Class No. 1422-30)
- Fuse Size: 1/4" x 1-1/4" (6.3mm x 32mm)
- Body Material: Ceramic
- Endcaps: Nickel-plated bronze
- RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: MDA-30A
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage
Product Data
- Weight : 3.5
