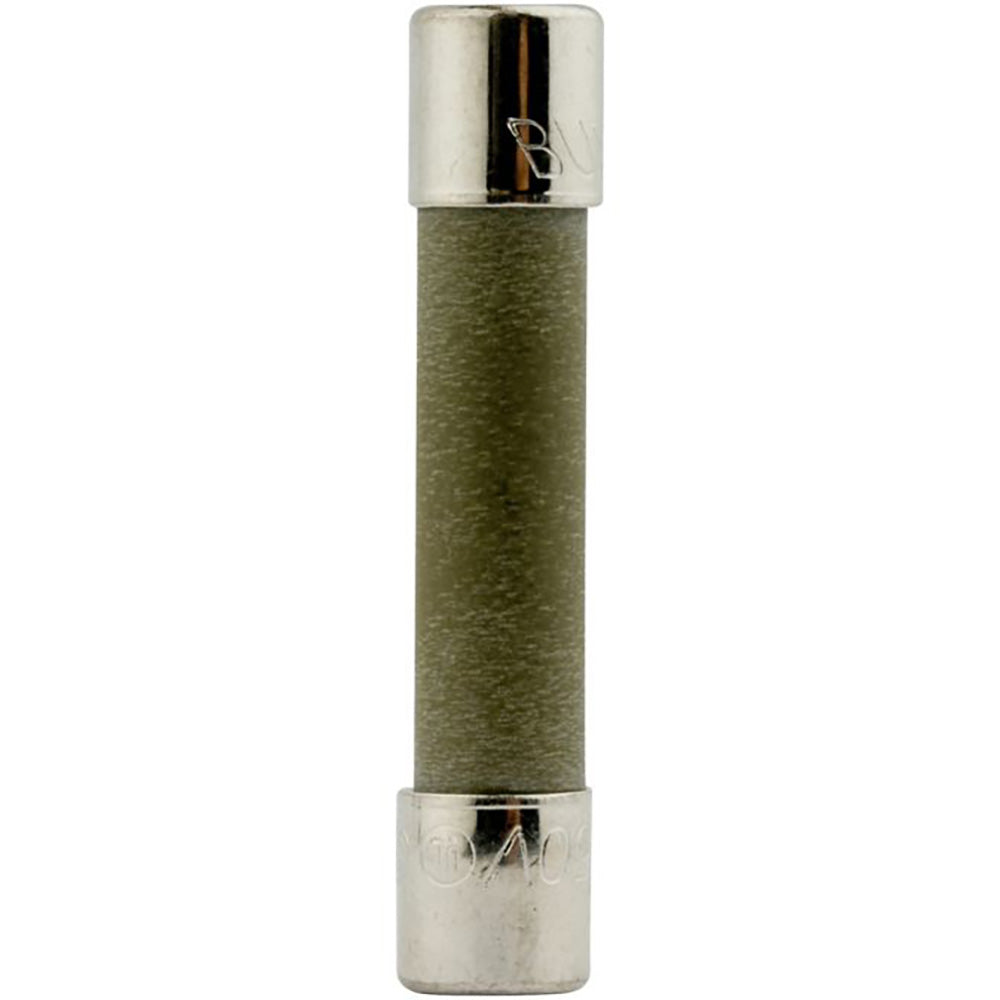

MDA-3-R - Eaton 3 Amp 250 Volt Time Delay Ceramic Cartridge Fuse 3AB Size 200A Interrupt Rating

MDA-3-R

MDA-3-R is a 3 Amp, 250 Volt AC time delay ceramic cartridge fuse designed for reliable circuit protection.MDA-3-R features a 1/4" x 1-1/4" 3AB size ceramic tube with nickel-plated bronze endcaps, providing a 200 Amp interrupting rating at 250 VAC and 10,000 Amp at 125 VAC. It requires a fuse holder for mounting and is UL listed and CSA certified for safety and performance.

Key Specifications
• Current Rating: 3 Amps
• Voltage Rating: 250 VAC
• Fuse Type: Time Delay Ceramic Cartridge
• Physical Size: 1/4" x 1-1/4" (3AB size)
• Interrupting Rating: 200 AIC @ 250 VAC, 10,000 AIC @ 125 VAC
• Mounting Type: Requires Holder/Clip
• Endcaps: Nickel-plated bronze
• Certifications: UL Listed, CSA Certified
• Typical Applications: Electronic circuits protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MDA-3-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : MDA Series
• Type : MDA
• Voltage : 250
• Amperage : 3
• AIC rating : 200A@250V
• Connection : Ferrule
• Diameter : 0.25
• Barrels : 1

Product Data

• UPC : 05171264526
• GTIN : 00051712645263
• Country of Origin : China
• Dimensions : x 1-1/4 in x
• Weight : 1
• Certification : CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
