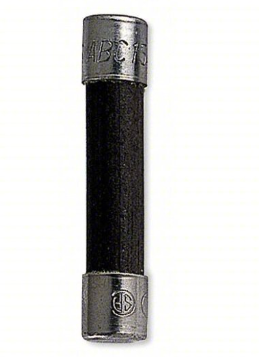

MDA-3/10-R - Eaton 0.3A 250VAC Time Delay Ceramic Fuse 3AB 35A Interrupt Rating

MDA-3/10-R

MDA-3/10-R is a time delay ceramic fuse from Eaton's MDA series designed for circuit protection with a 0.3 ampere rating and 250 volts AC voltage rating.This fuse features a cylindrical ceramic body with nickel-plated brass end caps, a 3AB (6.3 mm x 32 mm) size, and a clip/holder mounting type. It has a 35 amp interrupt rating at 250 VAC and 10 kA at 125 VAC, suitable for electronic small dimension applications requiring time delay protection. The fuse is non-indicating with ferrule terminals and meets Eaton's quality standards.

Key Specifications
• Amperage Rating: 0.3 A
• Voltage Rating: 250 VAC / 32 VDC
• Interrupt Rating: 35 A at 250 VAC, 10 kA at 125 VAC
• Fuse Type: Time Delay (Slow Blow)
• Body Type: Cylindrical Ceramic
• Fuse Size: 3AB (6.3 mm x 32 mm)
• Mounting Type: Clip/Holder
• Terminal Type: Ferrule
• Series: MDA
• Response Time: 60 min at 135% rated current, 120 s at 200% rated current
• Non-Indicating
• Manufacturer: Eaton (Bussmann)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: MDA-3/10-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : MDA Series
• Type : MDA
• Voltage : 250
• Amperage : 10
• AIC rating : 35kA@250V
• Connection : Ferrule
• Diameter : 0.25
• Barrels : 1



Product Data

• UPC : 05171264528
• GTIN : 00051712645287
• Country of Origin : China
• Weight : 1
