MDA-2-R - Eaton 2A 250VAC Time Delay Ceramic Fuse 3AB 1/4" x 1-1/4"

MDA-2-R

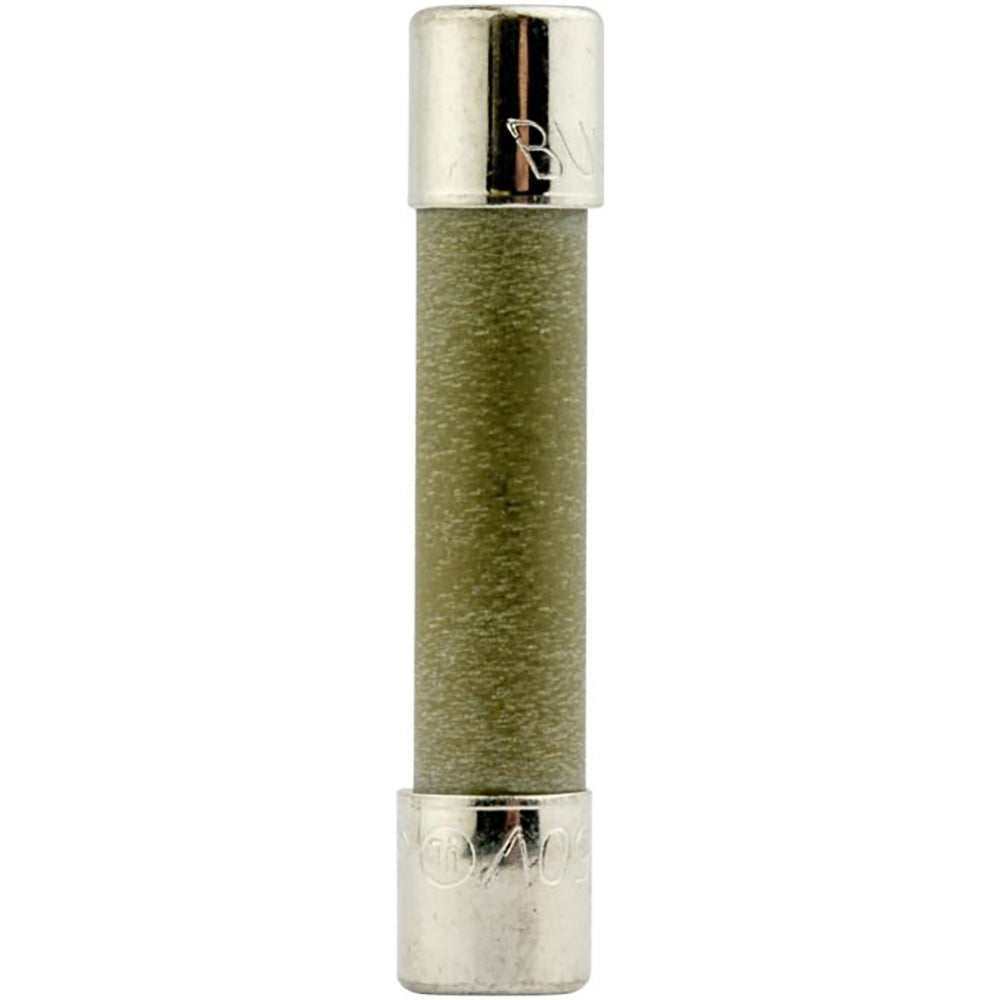

MDA-2-R is a time delay ceramic cartridge fuse designed for reliable circuit protection in a wide range of electrical applications. This Eaton MDA-2-R fuse features a 2 amp current rating and a 250 volt AC voltage rating. It is constructed with a ceramic tube body and nickel-plated bronze endcaps, providing durability and stable performance. The fuse is a slow blow (time delay) type, suitable for applications with inrush currents. Its physical size is 1/4" x 1-1/4" (6.3 mm x 32 mm), commonly referred to as 3AB.

• Current Rating: 2 A
• Voltage Rating: 250 VAC
• Fuse Type: Time Delay / Slow Blow
• Body Material: Ceramic
• Endcap Material: Nickel-plated bronze
• Physical Size: 1/4" x 1-1/4" (6.3 mm x 32 mm)
• Fuse Size/Group: 3AB
• Interrupting Rating: 200 A @ 250 VAC, 10,000 A @ 125 VAC
• Series: MDA
• UL Listed: Yes
• CSA Certified: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MDA-2-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : MDA Series
• Type : MDA
• Voltage : 250
• Amperage : 2
• AIC rating : 100kA@250V
• Connection : Ferrule
• Diameter : 0.25
• Barrels : 1

Product Data

• UPC : 05171264522
• GTIN : 00051712645225
• Country of Origin : China
• Dimensions : x 1-1/4 in x
• Weight : 1
• Certification : CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
