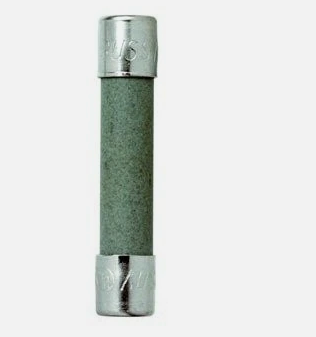

MDA-15-R - Eaton 15 Amp 250 Volt Time Delay Ceramic Fuse 1/4" x 1-1/4" 3AB Size 750A Interrupt Rating

MDA-15-R

MDA-15-R is a 15 Amp, 250 Volt AC time delay ceramic fuse designed for circuit protection.This Eaton MDA series fuse features a ceramic tube construction with nickel-plated bronze endcaps, providing reliable time-delay protection. It measures 1/4" x 1-1/4" (6.3 mm x 32 mm) and has an interrupting rating of 750 Amps at 250 VAC and 10,000 Amps at 125 VAC. The fuse is UL listed and CSA certified, suitable for use in a variety of electrical applications requiring slow-blow protection.

Key Specifications
• Current Rating: 15 Amps
• Voltage Rating: 250 VAC
• Fuse Type: Time Delay (Slow Blow)
• Fuse Size: 3AB (6.3 mm x 32 mm)
• Physical Size: 1/4" x 1-1/4"
• Interrupting Rating: 750 AIC @ 250 VAC, 10,000 AIC @ 125 VAC
• Construction: Ceramic tube with nickel-plated bronze endcaps
• Certifications: UL Listed, CSA Certified
• Series: MDA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: MDA-15-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : MDA Series
• Type : MDA
• Voltage : 250
• Amperage : 15
• AIC rating : 750kA@250V
• Connection : Ferrule
• Diameter : 0.25
• Barrels : 1



Product Data

• UPC : 05171264520
• GTIN : 00051712645201
• Country of Origin : China
• Dimensions : x 1-1/4 in x
• Weight : 1
• Certification : CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
