Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
MDA-10-R

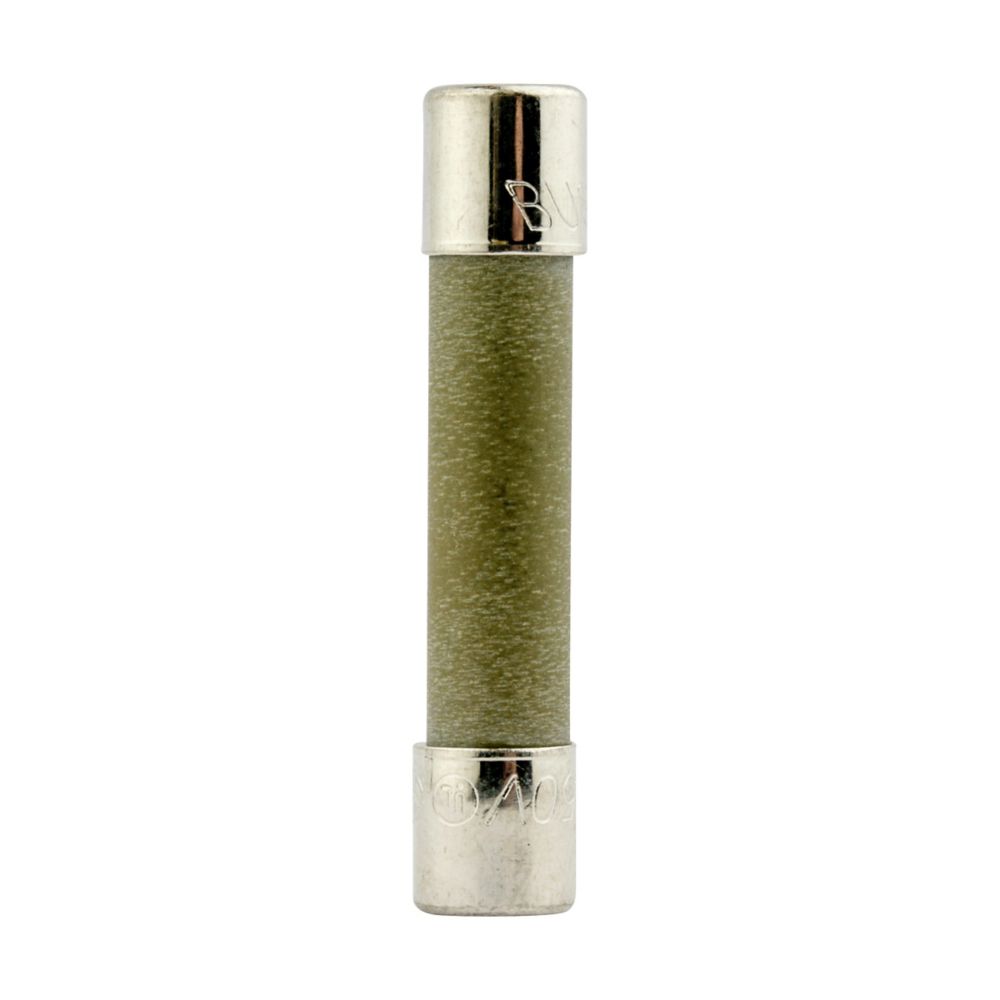

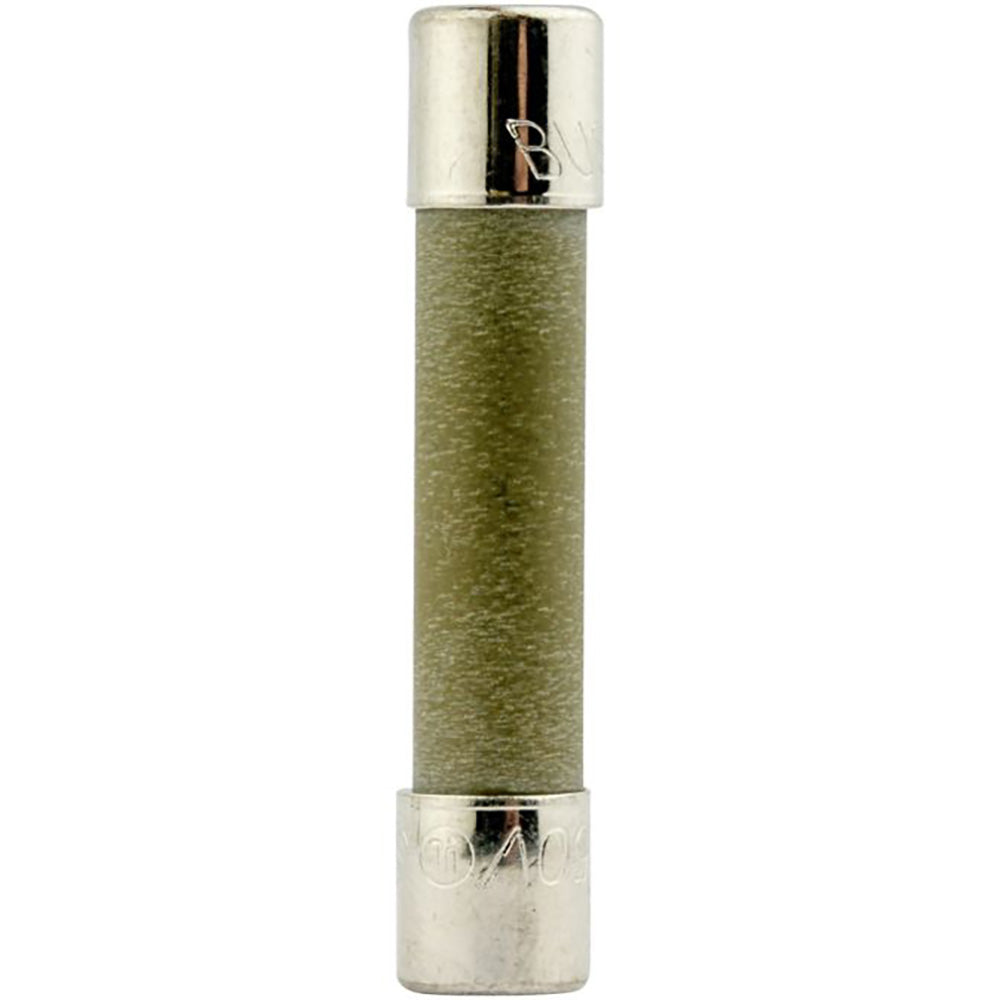

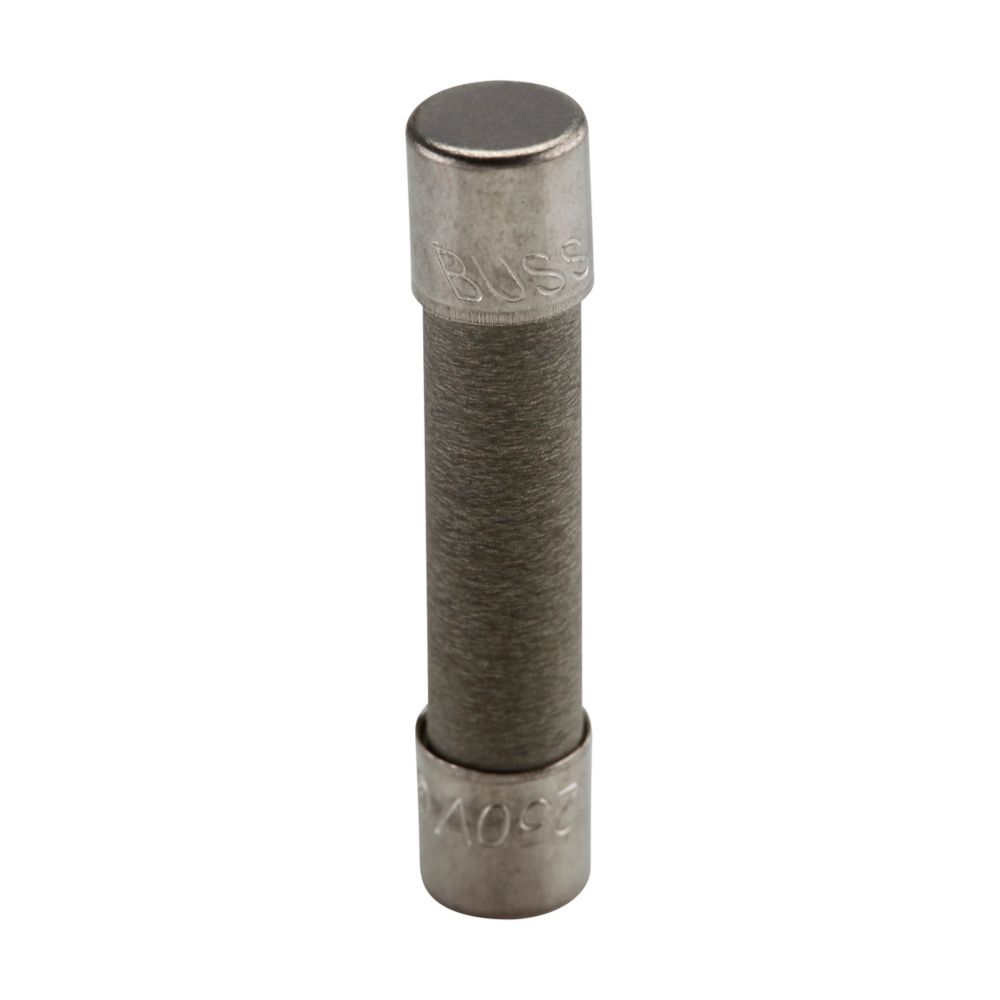

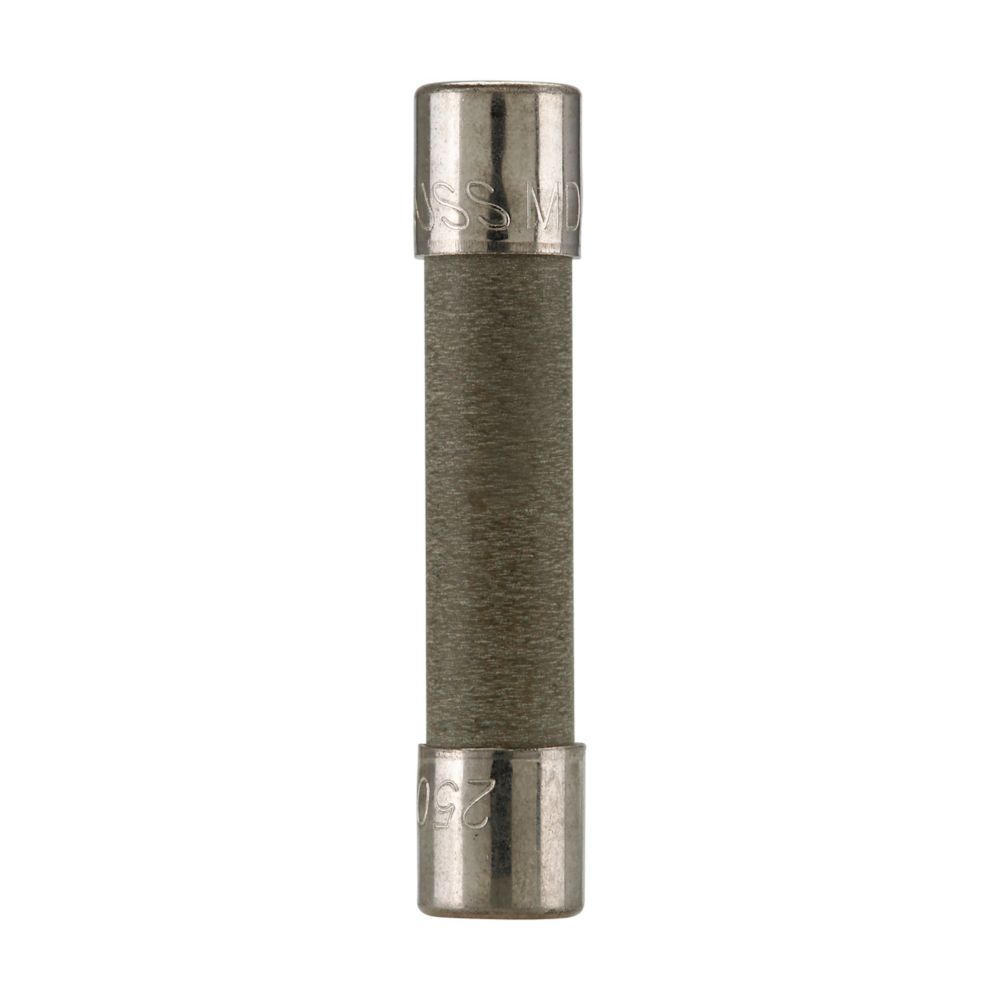

MDA-10-R is a 10 amp, 250 volt time delay ceramic fuse from Eaton's Bussmann MDA Series.
This fuse features a compact 1/4 inch diameter by 1-1/4 inch length ceramic tube design with ferrule end connections. It is rated for 250 Vac and 125 Vdc operation, providing reliable time delay protection for circuits requiring a compact fuse with high interrupting capacity. The MDA-10-R fuse has an interrupt rating of 200 amps at 250 Vac and meets UL 248-14, CSA, and CE standards.
- Key Specifications
- Amperage: 10A
- Voltage Rating: 250 Vac / 125 Vdc
- Fuse Type: Time Delay Ceramic Tube
- Dimensions: 1/4 inch diameter x 1-1/4 inch length
- Connection: Ferrule end x ferrule end
- Interrupt Rating: 200 AIC at 250 Vac
- Series: Bussmann MDA
- Certifications: UL 248-14, CSA, CE
- Part Number: MDA-10-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : MDA Series
- Type : MDA
- Voltage : 250
- Amperage : 10
- AIC rating : 200A@250V
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
- UPC : 05171264518
- GTIN : 00051712645188
- Country of Origin : China
- Dimensions : x 1-1/4 in x
- Weight : 1
- Certification : CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
