Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
MD63B800

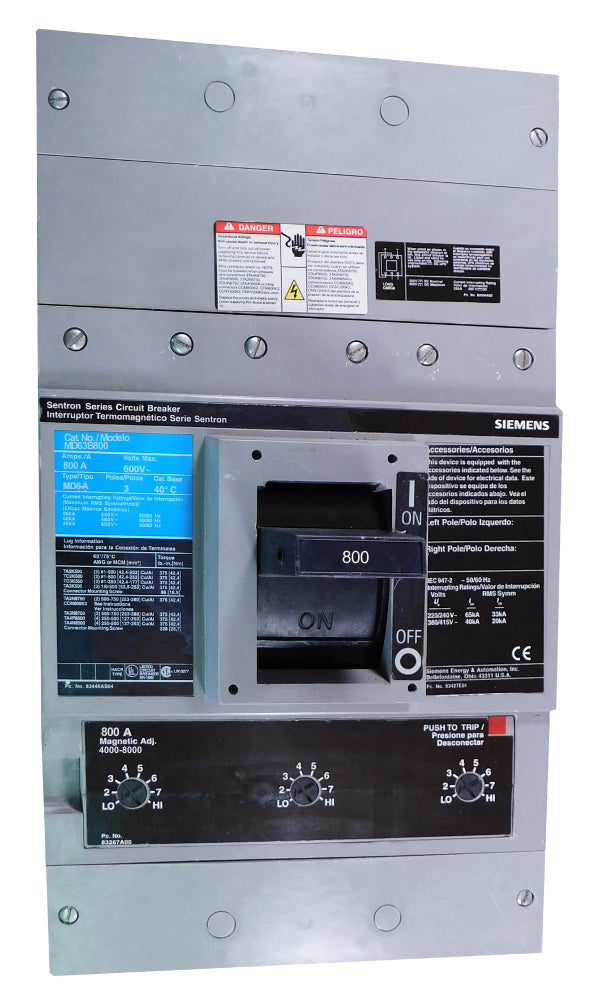

MD63B800 is a Siemens Type MD6 molded case circuit breaker designed for low voltage applications with a 3-pole configuration and 800 ampere rating.MD63B800 features a thermal magnetic trip unit, a 600 VAC/250 VDC voltage rating, and a 25 kA interrupting rating. It is a bolt-on mounted breaker from the MD frame series, meeting UL 489 and IEC 60947-2 standards for reliable circuit protection.
- Amperage: 800 A
- Voltage: 600 VAC / 250 VDC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 25 kA at 600 V
- Frame/Series: MD (Type MD6)
- Trip Unit: Thermal Magnetic (LI)
- Standards: UL 489, IEC 60947-2
- Enclosure Type: NEMA Type 1
- Application: Low Voltage Molded Case Circuit Breaker
Specifications
- Part Number: MD63B800
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : MD
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : MD Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643214484
- GTIN : 00783643214484
- Country of Origin : Mexico
- Weight : 0.022
- Wire Size : AWG 1/0 to 500KCM, Cu/Al
