Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
MAP36800V

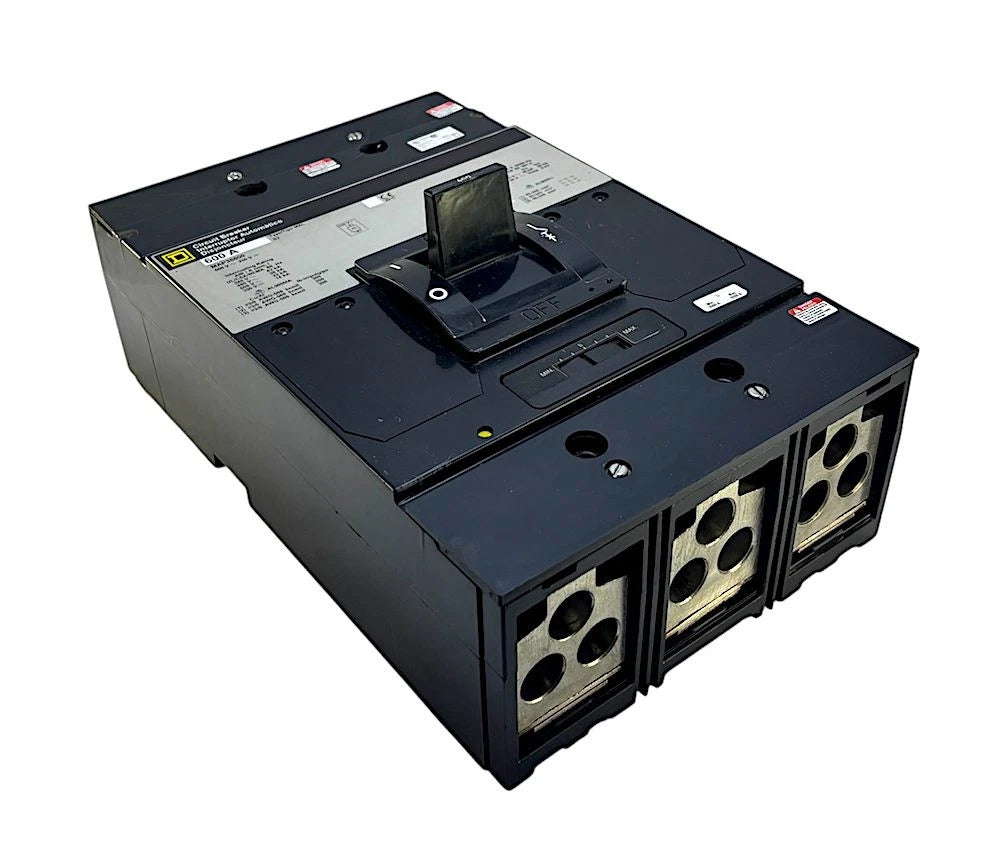

MAP36800V is a 3 pole thermal magnetic molded case circuit breaker designed for industrial power distribution applications. This Square D circuit breaker delivers reliable overcurrent protection with a current rating of 800 amps at 600VAC, featuring an interrupting rating of 30kAIC at 480V and bolt-on mounting configuration. Key Specifications
- Manufacturer: Square D
- Part Number: MAP36800V
- Amperage Rating: 800 Amps
- Voltage Rating: 600VAC
- Poles: 3
- Frame Type: MAP
- Mounting: Bolt-On
- Protection Type: Thermal Magnetic
- Interrupting Rating: 30kAIC at 480V
- Trip Functions: Long Time, Short Time, and Instantaneous

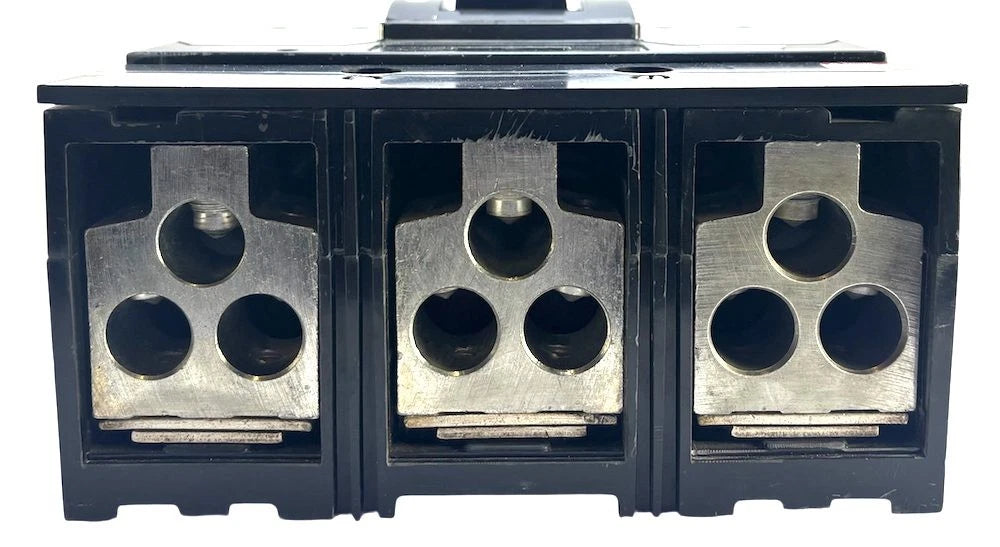

- Connection Type: Feed-Thru with Line and Load Side Lugs
Specifications
- Part Number: MAP36800V
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MAP Series
- Type : MAP
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : M Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 40
