Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
MAP36500V

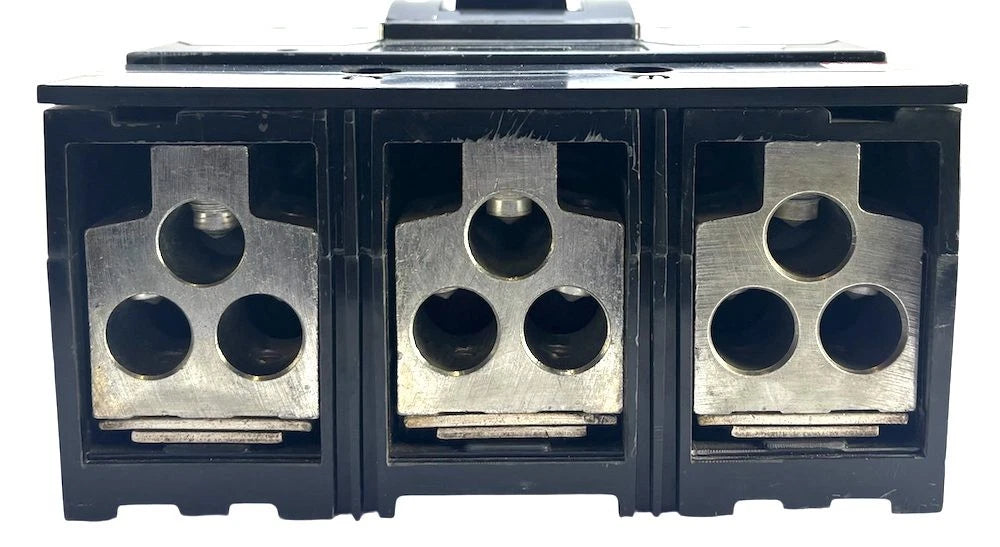

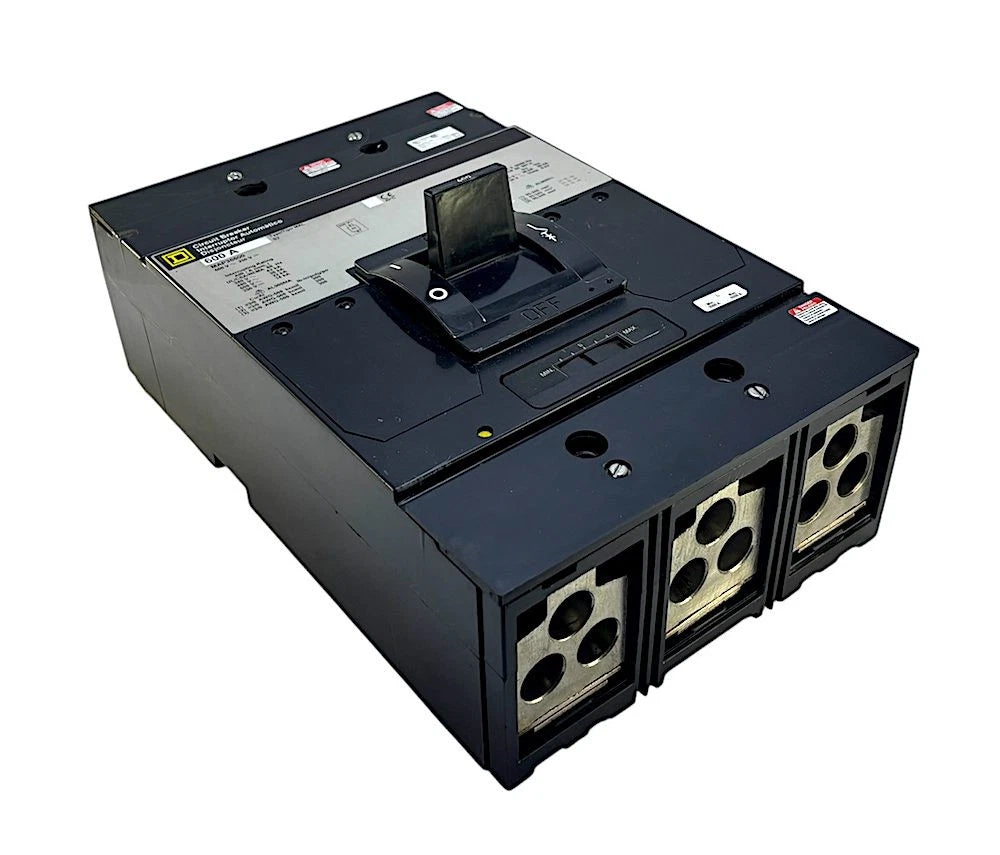

MAP36500V is a 3-pole molded case circuit breaker rated for 500 amperes at 600 volts AC, designed for thermal-magnetic protection in industrial and commercial power distribution applications.
The MAP36500V features a thermal-magnetic trip mechanism that provides reliable overcurrent and short-circuit protection. This molded case design offers compact installation with dimensions of 9 inches wide by 6.5 inches deep by 14 inches high. The breaker is part of Square D's MAP series and is suitable for use in standard electrical panels and distribution equipment.
- Amperage Rating: 500A
- Voltage Rating: 600V AC
- Poles: 3
- Type: Molded Case Circuit Breaker
- Trip Mechanism: Thermal-Magnetic
- Series: MAP
- Width: 9 inches
- Depth: 6.5 inches
- Height: 14 inches
- Manufacturer: Square D / Schneider Electric
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: MAP36500V
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MAP Series
- Type : MAP
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : M Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 40
