Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
MAL36300

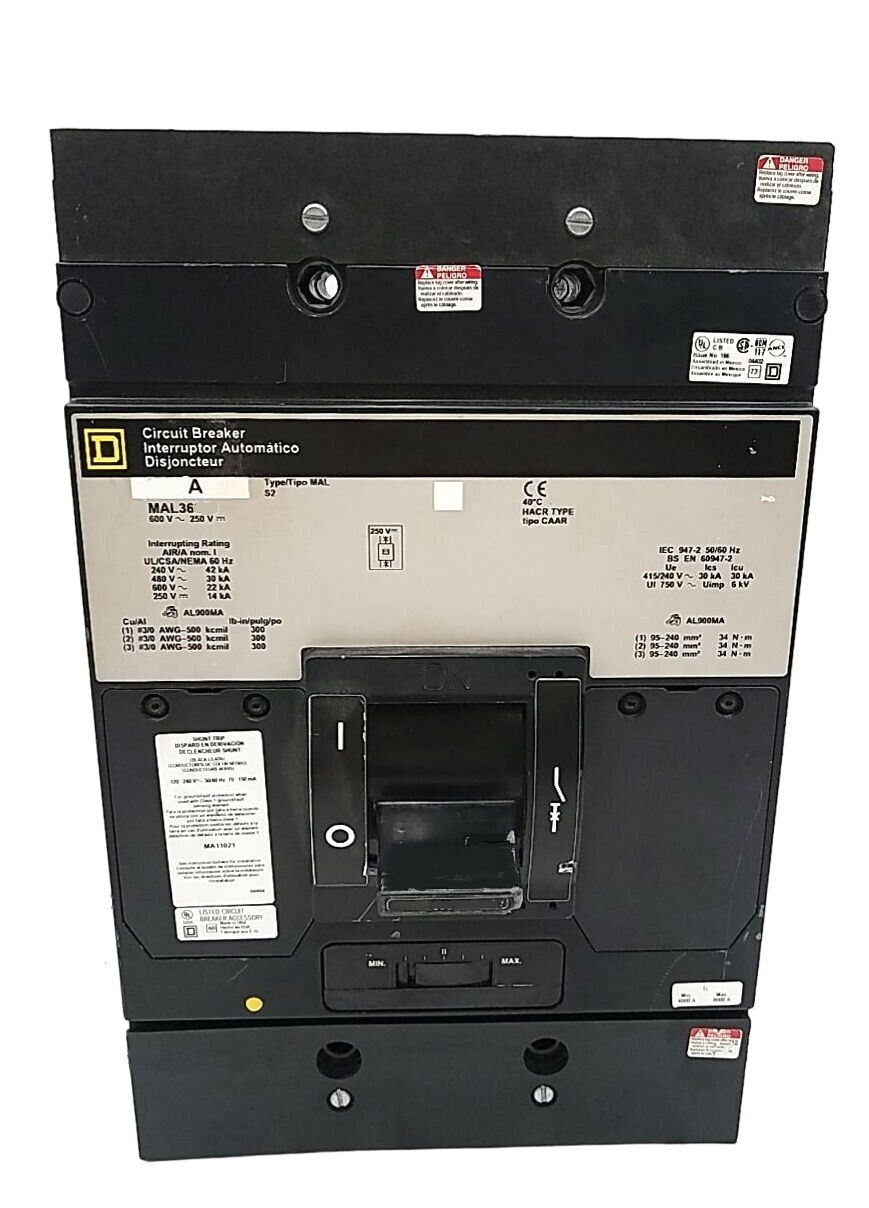

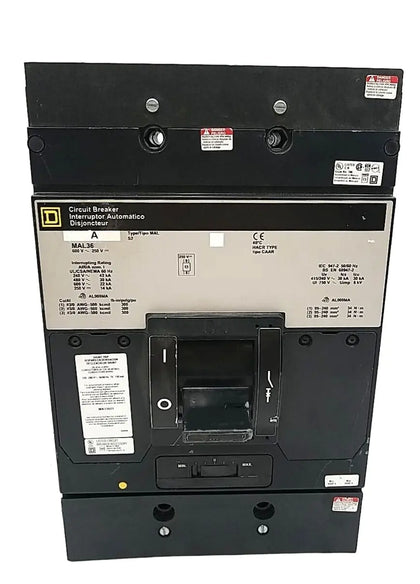

MAL36300 is a Square D 3 Pole thermal magnetic molded case circuit breaker rated for 300 Amps and 600 Volts.This circuit breaker features a MAL series frame with a 30kA interrupting rating at 480V, feed-thru connection type, and includes long-time and instantaneous trip functions. It is UL, CSA, NOM, and IEC approved, designed for line and load side lug terminals, and suitable for 3-phase applications.
- Manufacturer: Square D
- Part Number: MAL36300
- Amperage: 300 A
- Voltage Rating: 600 V AC, 250 V DC
- Poles: 3
- Interrupting Rating: 30kA @ 480V, 42kA @ 240V, 22kA @ 600V
- Frame Type: MAL
- Connection Type: Feed-Thru
- Trip Functions: Long-Time and Instantaneous (LI)
- Protection Type: Thermal Magnetic
- Terminal Connection: Line and Load Side Lug
- Certifications: UL 489, CSA C22.2, IEC 60947-2, NOM
Specifications
- Part Number: MAL36300
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MAL Series
- Type : MAL
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : M Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 40
- Certification : UL, CSA, NOM, IEC
