Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
MAL361200

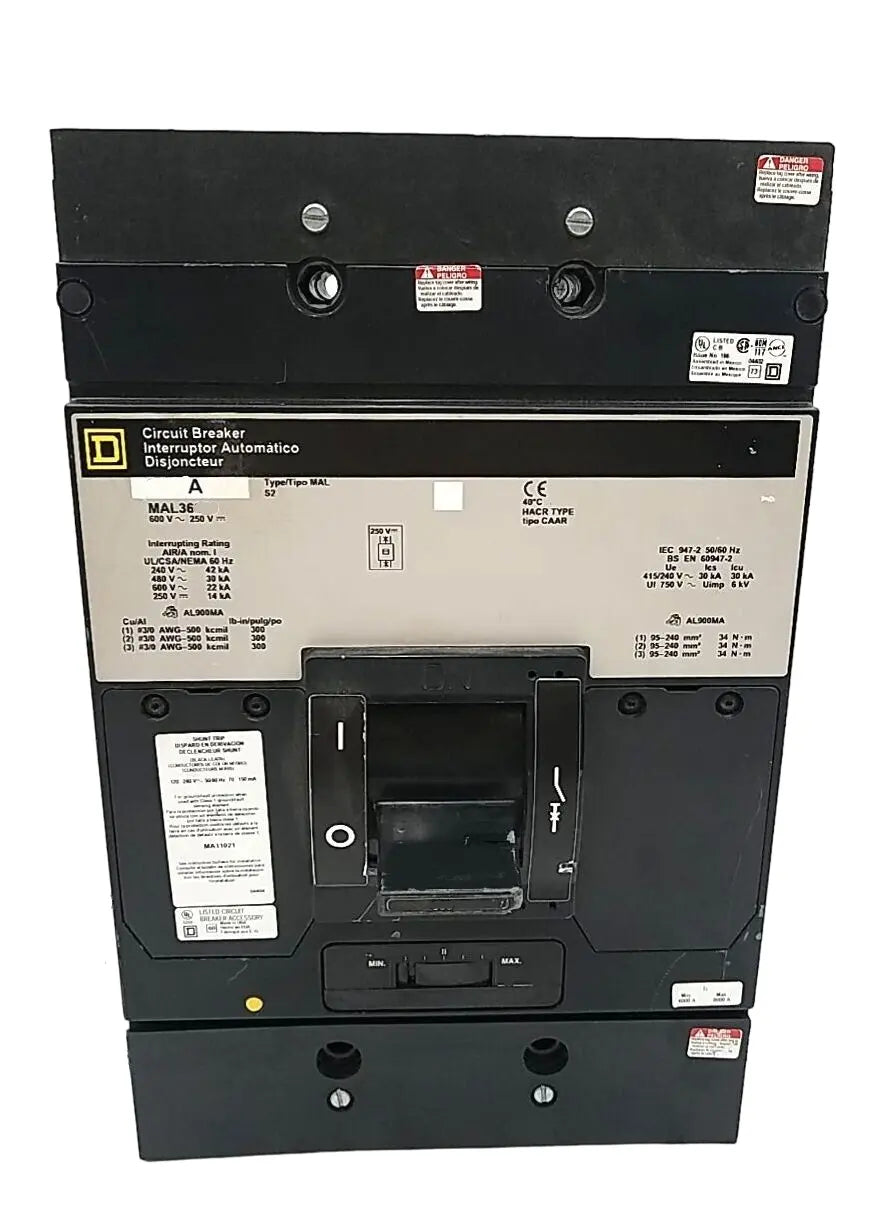

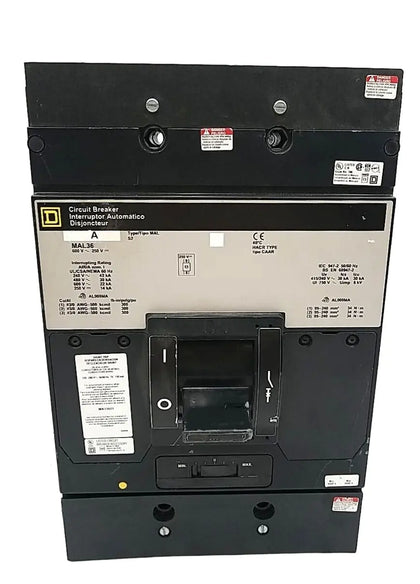

MAL361200 is a Square D 3 Pole thermal magnetic molded case circuit breaker rated for 1200 Amps and 600 Volts AC with feed-thru connection type.
This circuit breaker features a 30kA interrupting rating at 480V, supports long time, short time, and instantaneous trip functions, and includes line and load side lug terminals. It is designed for 3-phase applications and accepts wire gauges from 1/0 AWG to 350 kcmil. The MAL361200 is part of the MAL series with an M frame type and provides reliable thermal magnetic protection.
- Key Specifications
- Manufacturer: Square D
- Part Number: MAL361200
- Amperage: 1200A
- Voltage: 600VAC, 250VDC
- Poles: 3
- Interrupting Rating: 30kAIC @ 480V
- Frame Type: M (MAL Series)
- Trip Functions: Long Time, Short Time, Instantaneous
- Connection Type: Feed-Thru
- Terminal Connection: Line and Load Side Lug
- Wire Gauge Range: 1/0 AWG to 350 kcmil
- Protection Type: Thermal Magnetic
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: MAL361200
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MAL Series
- Type : MAL
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : Long Time, Short Time and Instantaneous Trip
- Frame Size : M Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901072508
- Weight : 40
- Wire Size : 1/0 AWG–350KCmil
