Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
MA36700

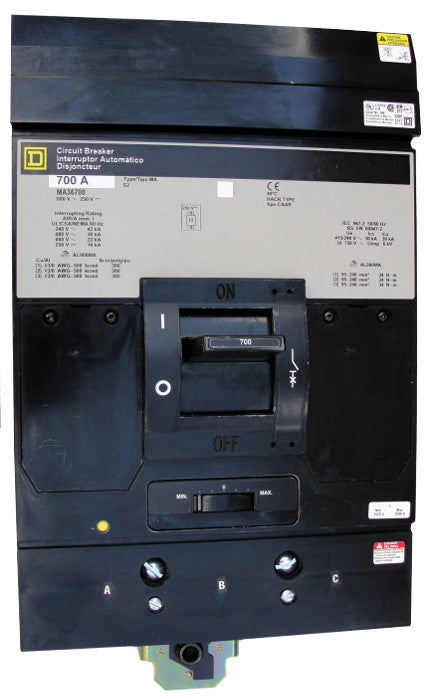

MA36700 is a Square D 3 Pole molded case circuit breaker with a 700 Amp rating and 600 Volt capacity, designed for reliable power distribution protection.This thermal magnetic circuit breaker features an I-Line style plug-in connection, long time, short time, and instantaneous trip functions, and a 30kA interrupting rating at 480V. It is UL, CSA, and CE certified, suitable for industrial and commercial applications requiring robust circuit protection.
- Amperage: 700 Amps
- Voltage: 600 VAC, 250 VDC
- Poles: 3
- Connection Type: I-Line Style Plug-In
- Interrupting Rating: 30kA at 480V
- Trip Functions: Long time, short time, instantaneous
- Protection Type: Thermal Magnetic
- Frame Type: MA
- Certifications: UL, CSA, CE
- Terminal Connection: Load side lug
- Dimensions: 9" W x 6.5" D x 14" H
Specifications
- Part Number: MA36700
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : I-Line
- Type : MA
- Voltage : 600
- Amperage : 700
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous
- Frame Size : M Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901009931
- GTIN : 00785901009931
- Country of Origin : Mexico
- Weight : 38
- Certification : UL
- Wire Size : 3/0 AWG-500KCmil
