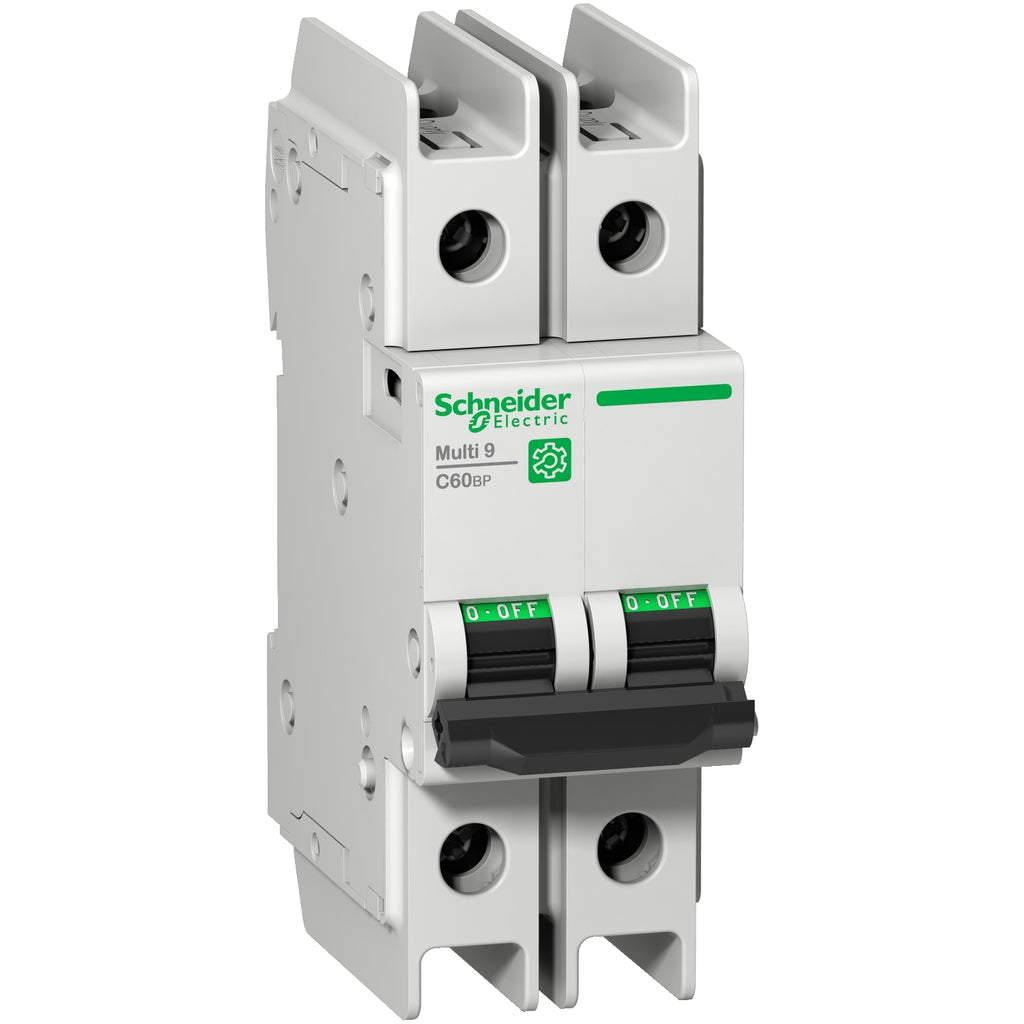

M9F42205 - Schneider Electric 5A 2-Pole Miniature Circuit Breaker, C Curve, 10kA, DIN Rail Mount

M9F42205

M9F42205 is a Schneider Electric 2-pole miniature circuit breaker rated at 5 amps with a C tripping curve and 10kA interrupt rating.This Multi9 C60BP series breaker is designed for low voltage applications with a thermal magnetic trip unit. It supports operational voltages up to 440VAC and mounts easily on DIN rails. The breaker features tunnel type terminals and meets UL489 and IEC/EN 60947-2 certifications.

• Amperage: 5A
• Poles: 2
• Trip Curve: C
• Interrupt Rating: 10kA at 415VAC
• Voltage Rating: Up to 440VAC
• Mounting Type: DIN Rail
• Series/Frame: Multi9 C60BP
• Trip Unit: Thermal Magnetic
• Terminal Type: Tunnel
• Certifications: UL489, IEC/EN 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: M9F42205
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Type : Multi9
• Voltage : 240/415/440VAC
• Amperage : 5
• Phase : 1
• Poles : 2
• AIC rating : 14kAIC at 120/240VAC
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 060648116981
• GTIN : 03606481169815
• Country of Origin : France
• Dimensions : 4.06 in (103 mm) x 1.4 in (36 mm) x 2.8 in (72 mm) (Height x Width x Depth)
• Weight : 0.54
• Standards : RoHS, REACh
• Certification : UL, CSA, EN/IEC, CCC, GB
• Wire Size : AWG 18 to AWG 8
