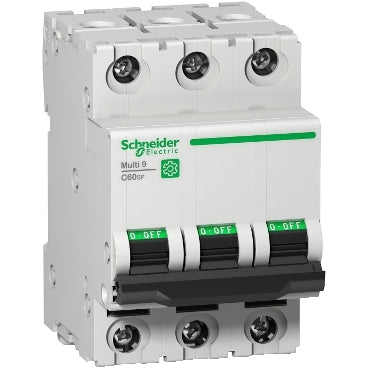

M9F22320 - Schneider Electric 20A 3-Pole Miniature Circuit Breaker C Curve 480Y/277V 10kA DIN Rail Mount

M9F22320

M9F22320 is a Schneider Electric Multi9 C60SP miniature circuit breaker designed for reliable overcurrent protection in low voltage applications.This 3-pole breaker features a 20 ampere rating with a C trip curve, suitable for general purpose protection. It supports a voltage rating of 480Y/277 V AC and has a breaking capacity of 10 kA. The device mounts easily on a DIN rail with clip-on mounting and includes tunnel type terminals for flexible wiring options. It is padlockable and rated IP20 for protection against solid objects. The breaker complies with IEC 60947-2 and UL standards, ensuring safety and durability with mechanical and electrical lifespans of 20,000 and 10,000 cycles respectively.

Key Specifications
• Amperage: 20 A
• Poles: 3
• Voltage Rating: 480Y/277 V AC
• Trip Curve: C
• Interrupt Rating: 10 kA
• Mounting Type: DIN Rail Clip-on
• Terminal Type: Tunnel terminals (top/bottom)
• IP Rating: IP20
• Mechanical Durability: 20,000 cycles
• Electrical Durability: 10,000 cycles
• Padlockable: Yes
• Certifications: IEC 60947-2, UL 1077

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: M9F22320
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Poles : 3

Product Data

• UPC : 785901719861
• GTIN : 03606481168528
• Country of Origin : France
• Dimensions : 3.2 in (81 mm) x 2.1 in (54 mm) x 2.8 in (72 mm) (Height x Width x Depth)
• Weight : 0.758
• Certification : CCC, CSA C22.2 No 235, EN/IEC 60947-2, GB 14048.2, UL 1077, UR
