M9F22102 - Schneider Electric 2A 1P Miniature Circuit Breaker C60SP C Curve 10kA 415V AC 60V DC UL1077

M9F22102

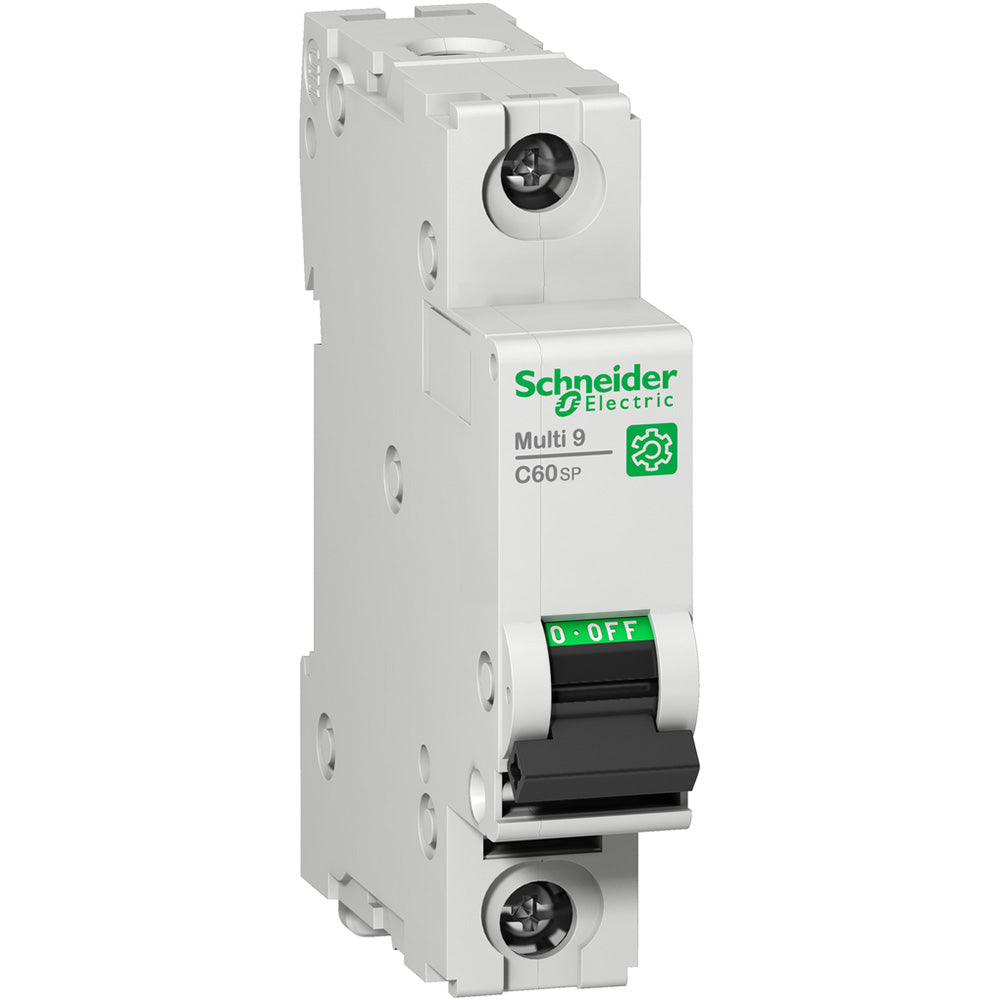

M9F22102 is a Schneider Electric Miniature Circuit Breaker (MCB) from the Multi9 C60SP series, designed for single pole protection with a 2 ampere rating.This MCB features a thermal-magnetic trip unit with a C tripping curve, suitable for distribution applications. It supports an operational voltage of up to 415V AC and 60V DC, with a rated insulation voltage of 500V and impulse withstand voltage of 6kV. The device has an interrupt rating of 10 kA at 277V AC and complies with UL 1077 standards. It is designed for DIN rail mounting and provides reliable circuit protection with a compact footprint.

• Rated current: 2 A
• Poles: 1 (single pole)
• Voltage rating: 415 V AC, 60 V DC
• Interrupt rating: 10 kA at 277 V AC, 14 kA at 120/240 V AC
• Trip curve: C Curve (thermal-magnetic)
• Rated insulation voltage (Ui): 500 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting type: DIN rail
• Standards: UL 1077, IEC/EN 60947-2
• Series/Frame: Multi9 C60SP
• Country of origin: France

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: M9F22102
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Poles : 1

Product Data

• UPC : 785901718864
• GTIN : 03606481168269
• Country of Origin : France
• Dimensions : 3.2 in (81 mm) x 0.7 in (18 mm) x 2.8 in (72 mm) (Height x Width x Depth)
• Weight : 0.254
• Certification : CCC, CSA C22.2 No 235, EN/IEC 60947-2, GB 14048.2, UL 1077, UR
