Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
M9F14232

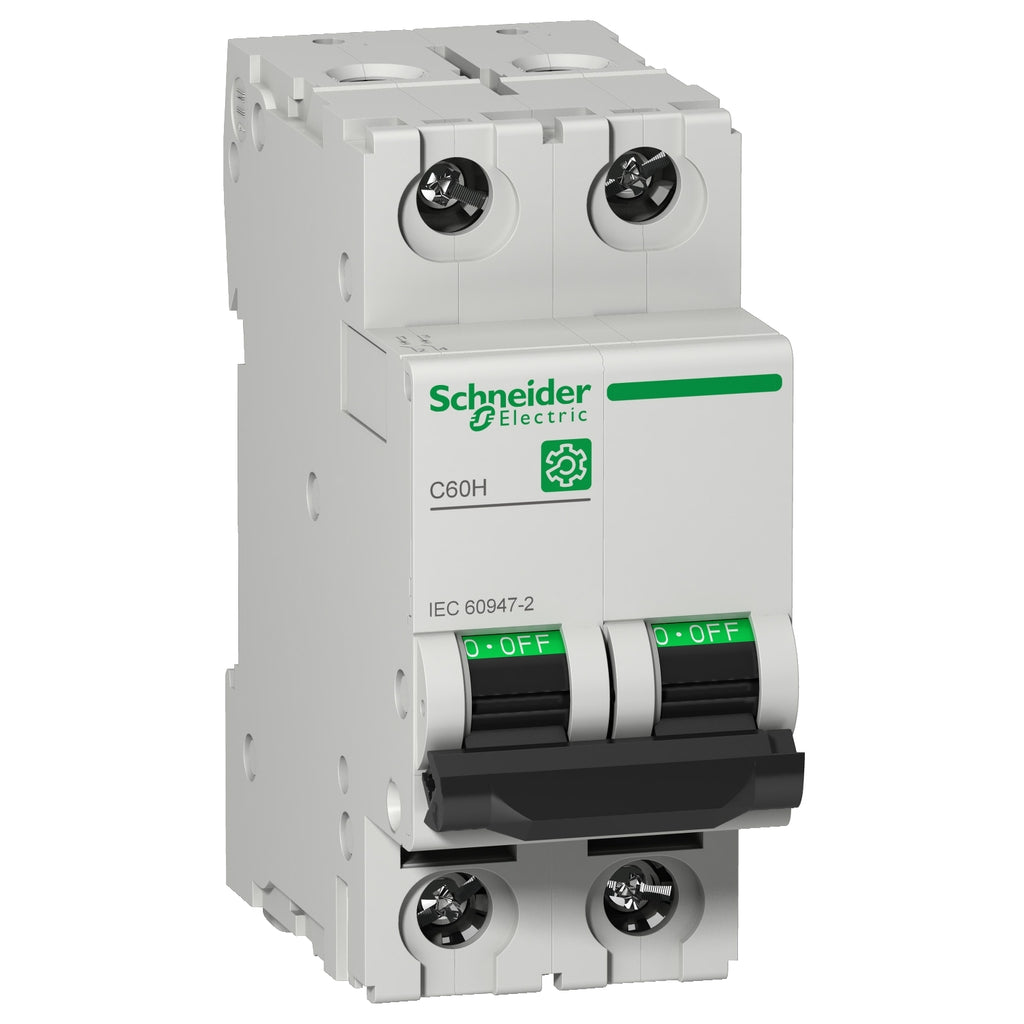

M9F14232 is a Schneider Electric 32 Amp, 2 Pole miniature circuit breaker designed for DIN rail mounting with a C tripping curve.
This Multi9 C60H series breaker provides reliable thermal magnetic protection with a rated short circuit breaking capacity of 15kA at 415VAC, conforming to IEC/EN 60947-2 standards. It supports voltages up to 440 VAC and 125 VDC, features a toggle mechanism, and is UL 1077 recognized. The breaker is suitable for OEM and control panel applications, offering electrical endurance up to 10,000 cycles and mechanical endurance up to 20,000 cycles.
- Key Specifications
- Amperage: 32A
- Number of Poles: 2
- Voltage Rating: 440 VAC, 125 VDC
- Mounting Type: DIN Rail
- Interrupt Rating: 15kA at 415VAC
- Trip Unit: Thermal Magnetic, C Curve
- Series/Frame: Multi9 C60H
- Breaker Mechanism: Toggle
- UL Certification: UL 1077 Recognized
- Electrical Endurance: 10,000 cycles
- Mechanical Endurance: 20,000 cycles
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: M9F14232
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Poles : 2
Product Data
- UPC : 060648057722
- GTIN : 03606480577222
- Country of Origin : France
- Dimensions : 3.2 in (81 mm) x 1.4 in (36 mm) x 2.8 in (72 mm) (Height x Width x Depth)
- Weight : 0.525
- Certification : EN/IEC 60947-2;EAC;CCC
