Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
M9F14210

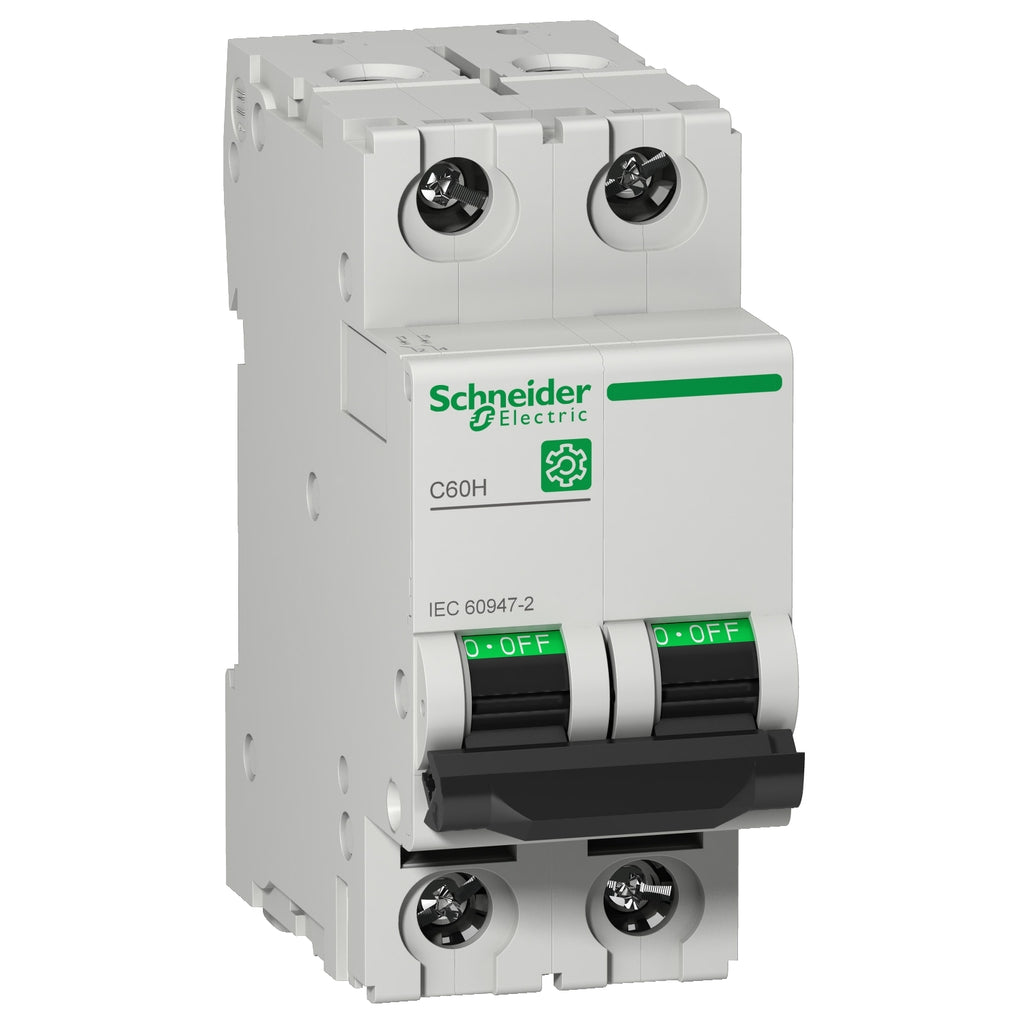

M9F14210 is a Schneider Electric Multi9 C60H miniature circuit breaker (MCB) designed for low voltage power distribution and control panel applications. This two-pole supplementary breaker provides reliable overcurrent protection with a C-curve tripping characteristic and 15 kA breaking capacity at 415 VAC per IEC/EN 60947-2 standards.Key Specifications
- Poles: 2P (Two Pole)
- Rated Current: 10 Amperes
- Voltage Rating: 240/415/440 VAC, 125 VDC
- Trip Unit Technology: Thermal-Magnetic
- Tripping Curve: C Curve (7-10 x Amp Rating)
- Breaking Capacity: 15 kA at 415 VAC (IEC/EN 60947-2)
- Mounting Type: DIN Rail
- Actuator Type: Toggle
- UL Rating: UL 1077 Recognized
- Operating Frequency: 50/60 Hz
- Dimensions: 36mm (W) x 81mm (H) x 72mm (D)
- DIN Rail Width: 4 pitches of 9mm
Specifications
- Part Number: M9F14210
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Poles : 2
Product Data
- UPC : 60648057718
- GTIN : 03606480577185
- Country of Origin : France
- Dimensions : 3.2 in (81 mm) x 1.4 in (36 mm) x 2.8 in (72 mm) (Height x Width x Depth)
- Weight : 0.469
- Certification : EN/IEC 60947-2;EAC;CCC
