Description
M800DS

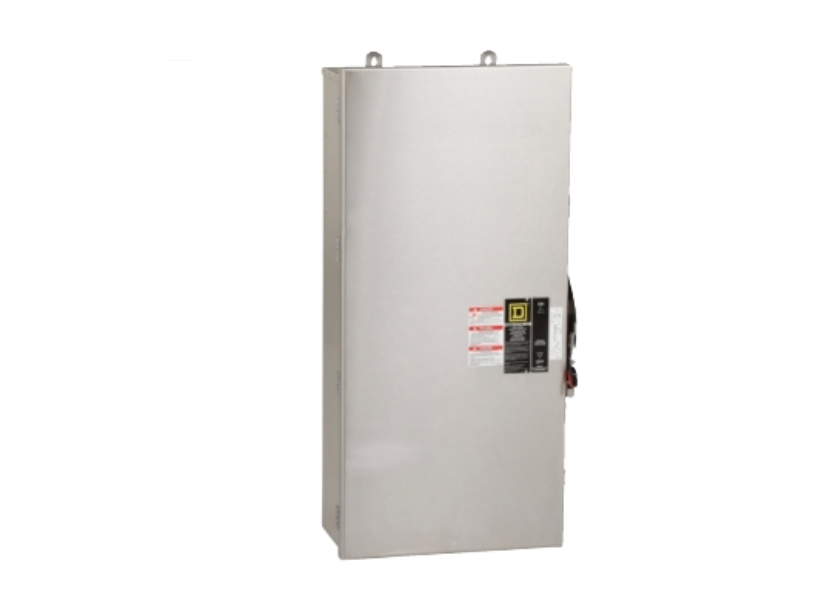

M800DS is a stainless steel circuit breaker enclosure designed for 300A to 800A PowerPact M and P series breakers, supporting 2 and 3 poles.The enclosure is rated for 600V and offers NEMA 3, 3R, 4, 4X, and 5 protection, making it suitable for indoor and outdoor use with watertight, dust-tight, and corrosion-resistant features. It accepts MGL, MJL, PGL, PJL, PKL, and PLL circuit breakers. Circuit breakers are ordered separately for field installation.
- Key Specifications
- Amperage: 300A to 800A
- Voltage: 600V
- Poles: 2 and 3
- Material: Stainless Steel (Type 304)
- NEMA Ratings: 3, 3R, 4, 4X, 5
- Compatible Breaker Types: PowerPact M and P series (MGL, MJL, PGL, PJL, PKL, PLL)
- Mounting Type: Enclosure for field installation
- Certifications: UL, CSA
- Short Circuit Rating: Matches installed breaker rating
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: M800DS
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Amperage : 300-800
- Compatible Frames : MGL,MJL,PGL,PJL,PKL,PLL
Product Data
- UPC : 785901669890
- GTIN : 0078590166890
- Country of Origin : Mexico
- Dimensions : 40.83 in (1036.96 mm) x 20.75 in (527.05 mm) x 9.5 in (241.3 mm) (Height x Width x Depth)
- Weight : 86.99 lb
